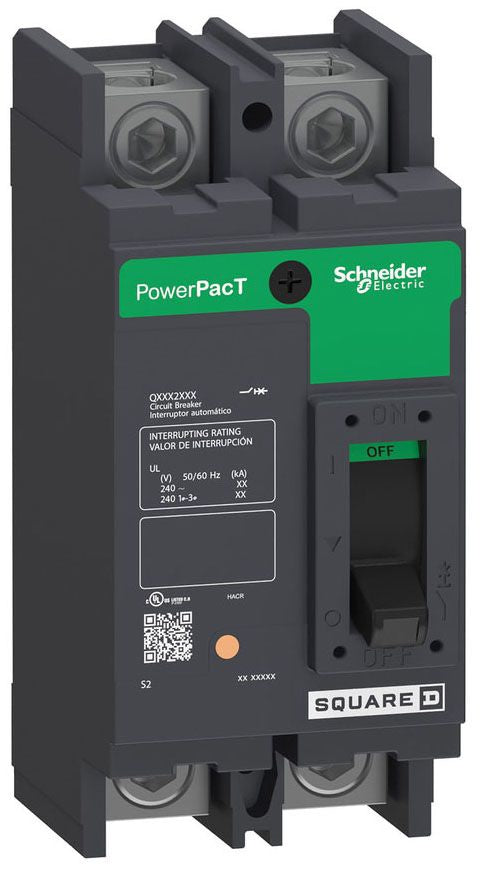

Square D QDL22200 | 200A 2-Pole PowerPacT Q-Frame Thermal Magnetic Circuit Breaker

Main Description:

The Square D QDL22200 is a 200-amp, 2-pole PowerPacT Q-Frame circuit breaker engineered for dependable overcurrent protection and switching in 240-volt AC systems. Featuring thermal-magnetic trip technology, a robust 25 kA interrupting rating at 120/208 VAC and 240 VAC, and an 80% continuous current rating, this breaker delivers reliable performance in demanding commercial and industrial applications. Designed with lugs on both line and load sides and equipped with an integral push-to-trip button, the QDL22200 ensures ease of installation, safe operation, and long-term electrical protection in compliance with UL, CSA, NOM, and IEC standards.

Technical Overview:

• Manufacturer: Schneider Electric

• Brand: Square D

• Part Number: QDL22200

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Condition: New/Never Used Surplus

• Series / Frame: PowerPacT Q-Frame

• Type / Code: QDL (Breaking Capacity Code D)

• Poles: 2

• Amperage Rating: 200 Amps

• Voltage Rating (Ue): 240 VAC, 50/60 Hz

• Interrupting Capacity:

  • 25 kA @ 120/208 VAC

  • 25 kA @ 240 VAC

• Trip Type: Thermal Magnetic

• Magnetic Trip Settings:

  • Magnetic Tripping Current: 2400 A

  • Magnetic Hold Current: 1200 A

• Continuous Current Rating: 80%

• Impulse Withstand Voltage (Uimp): 8 kV

• Utilization Category: Category A

• Mechanical Durability:

  • 1,000 cycles (loaded)

  • 5,000 cycles (unloaded)

• Control Type: Operating Handle

• Local Signaling: Trip Indicator (Green)

• Mounting Mode: Unit-Mount Lug

• Electrical Connections: Line Lugs / Load Lugs

• Application: Commercial, Industrial, and Heavy-Duty Power Distribution

• Certifications: UL Listed, CSA Certified, NOM Certified, IEC Compliant

Key Features:

• PowerPacT Q-Frame breaker with 200A, 2-pole configuration

• 25 kA interrupting capacity at both 120/208 VAC and 240 VAC

• Thermal-magnetic trip unit with reliable overload and fault protection

• Push-to-trip button for manual safety tripping

• Lugs on line and load sides for secure installation

• 80% continuous current rating for stable long-term operation

• Built to UL, CSA, NOM, and IEC standards
