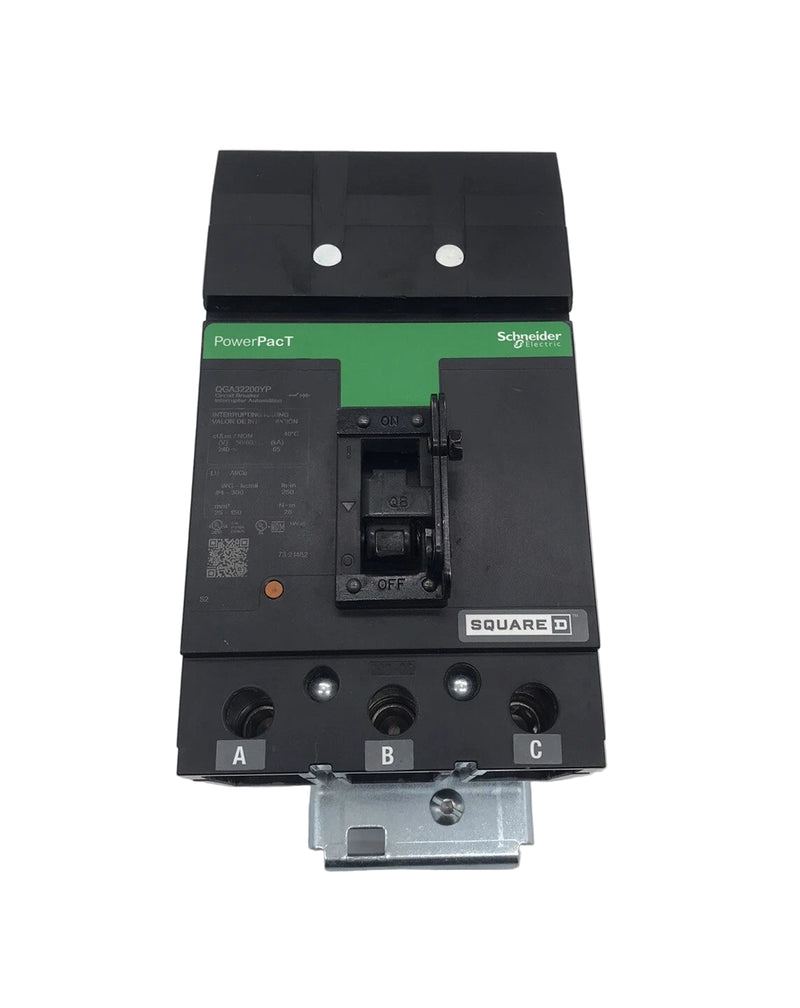

Schneider Electric QGA32200 | 200A 3-Pole PowerPacT Q-Frame Circuit Breaker

Main Description:

The Schneider Electric QGA32200 is a high-performance PowerPacT Q-Frame molded case circuit breaker engineered for reliable overcurrent protection in 240VAC distribution systems. Featuring a 200A rating, 3-pole configuration, and an exceptional 65kA interrupting capacity at 240VAC, this breaker delivers robust short-circuit protection for demanding electrical applications. Its thermal-magnetic trip unit ensures dependable response to overload and fault conditions, while the I-Line mounting system enables fast, secure installation in commercial and industrial environments.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: QGA32200

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Product Series: PowerPacT Q-Frame

• Device Application: Distribution Line

• Poles: 3

• Amperage Rating: 200A

• Voltage Rating: 240VAC (50/60 Hz)

• Interrupting Rating: 65kA @ 240VAC

• Breaking Capacity Code: G

• Trip Unit Technology: Thermal-Magnetic

• Magnetic Hold Current: 1200A

• Magnetic Tripping Current: 2400A

• Continuous Current Rating: 80%

• Utilization Category: Category A

• Local Signaling: Trip Indicator (Green)

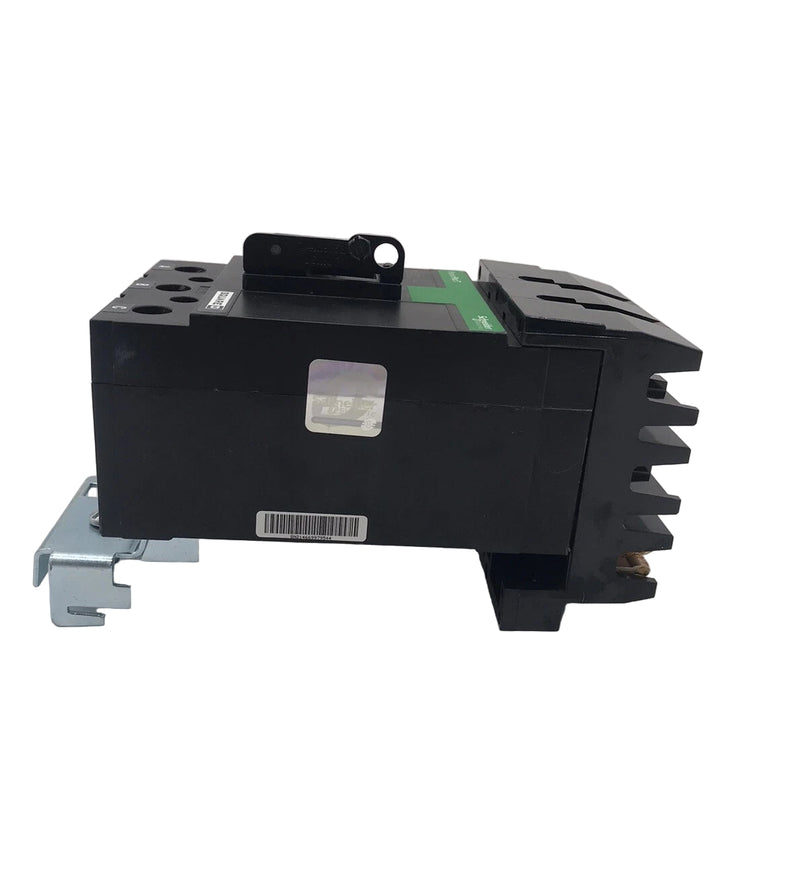

• Mounting Mode: I-Line Bracket

• Mounting Support: Bracket

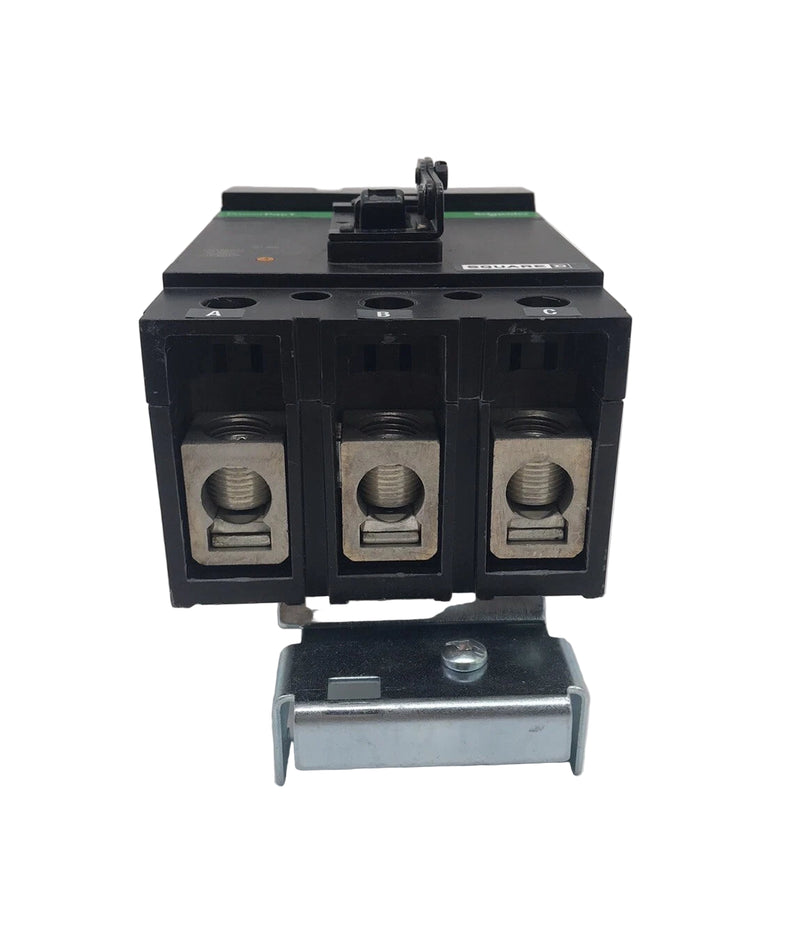

• Electrical Connection: I-Line (line), Lugs (load)

• Tightening Torque: 247.82 lbf-in (28 N·m)

• Wire Size Range: AWG 4…300 kcmil (25…150 mm²)

• Power Wire Strip Length: 0.87 in (22 mm)

• Dimensions (HxWxD): 6.47 in × 4.5 in × 3.93 in

• Phase Connection: ABC

• Application Rating: HACR Rated

• Impulse Withstand Voltage: 8 kV

• Operating Frequency: 50/60 Hz

• Condition: New/Never Used Surplus

Key Features:

• High interrupting capacity of 65kA at 240VAC for demanding fault conditions

• Thermal-magnetic trip unit for accurate overload and short-circuit protection

• I-Line mounting provides quick, secure installation into distribution equipment

• Line-side I-Line stab connection and load-side lugs for flexible wiring

• Compatible with panelboards, switchboards, enclosures, and metering devices

• Ideal replacement for legacy Q2 Series breakers

• Complies with UL, CSA, NOM, and IEC standards
