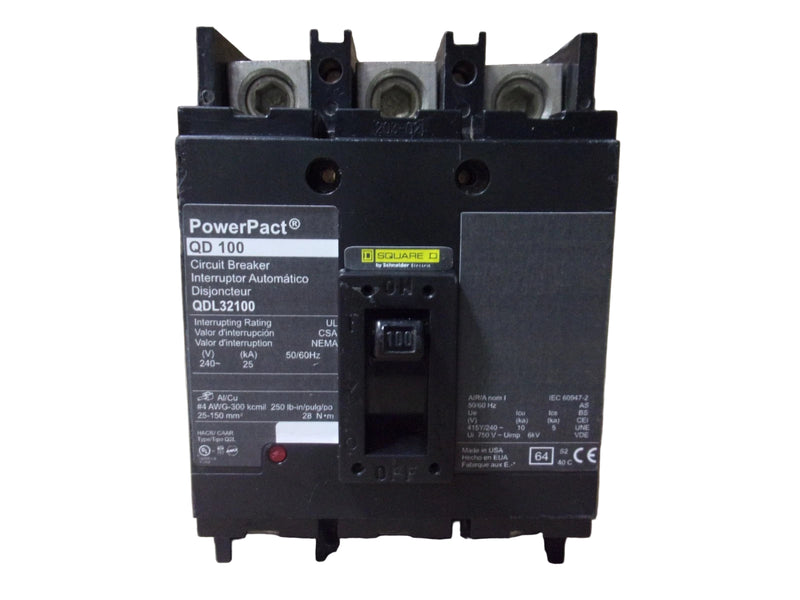

Schneider Electric QDL32100 | 100A 3-Pole PowerPact QDL Molded Case Circuit Breaker

Main Description:

The Schneider Electric QDL32100 is a PowerPacT Q-Frame molded case circuit breaker engineered for dependable protection of commercial and industrial electrical systems. With a 100A rating and a voltage capacity of 240VAC, it provides reliable overcurrent and short-circuit protection using a thermal-magnetic trip mechanism. This breaker features Long-Time and Instantaneous (LI) trip functions and a standard interrupting rating of 25kA at 240V. Designed with a 3-pole configuration for three-phase applications, the QDL32100 uses a feed-thru connection style and includes both line and load side lug terminals for straightforward installation. The durable Q-Frame construction ensures consistent performance, making the QDL32100 a trusted solution for a wide variety of electrical distribution setups.

Technical Overview:

• Brand: Schneider Electric

• Part Number: QDL32100

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Family: PowerPacT

• Type: QDL

• Voltage Rating: 240V AC

• Amperage Rating: 100A

• Poles: 3

• Phase: 3

• Frame Type: Q Frame

• Protection Type: Thermal Magnetic

• Trip Functions: LI – Long-Time & Instantaneous

• AIC Rating: 25kA @ 240V

• Connection Type: Feed-Thru (Line & Load Lugs)

• Condition: New/Never Used Surplus

• Weight: 6.6 lb (3.0 kg)

Key Features:

• 100A, 240V, 3-pole Q-Frame molded case breaker

• Thermal-magnetic protection for accurate overload and fault response

• LI trip functions for long-time overload and instantaneous short-circuit protection

• 25kA interrupting capacity at 240V

• Feed-thru design with line/load lugs for simplified installation

• UL listed for broad application compatibility

• Rugged Q-Frame construction for commercial/industrial durability
