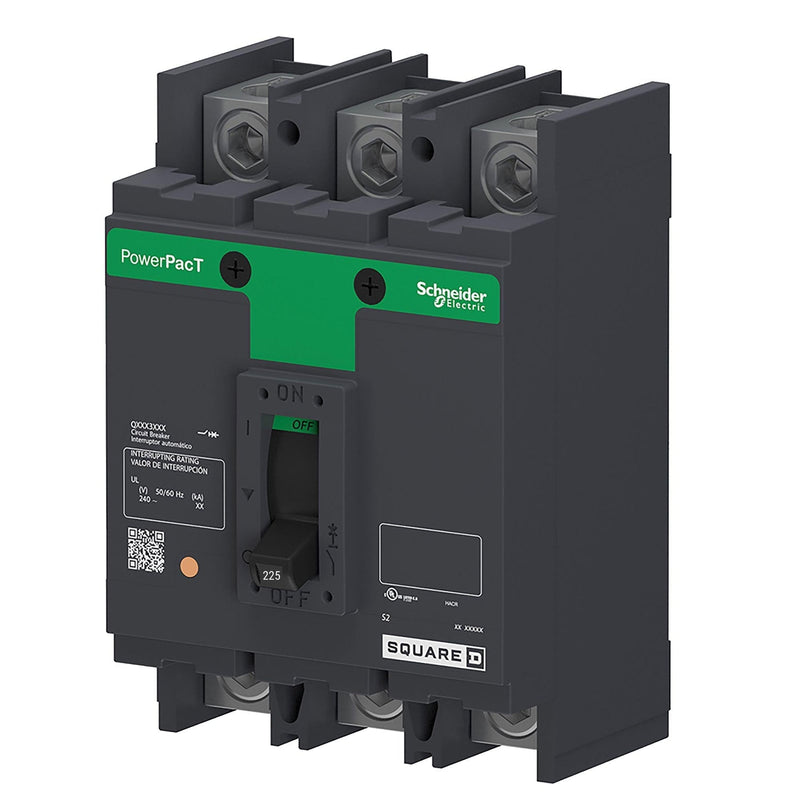

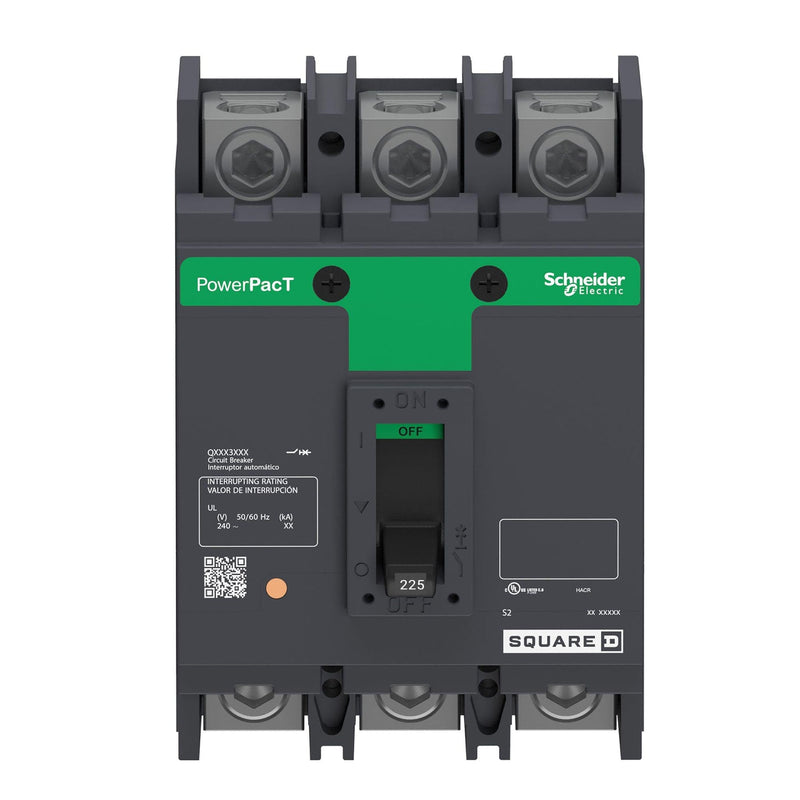

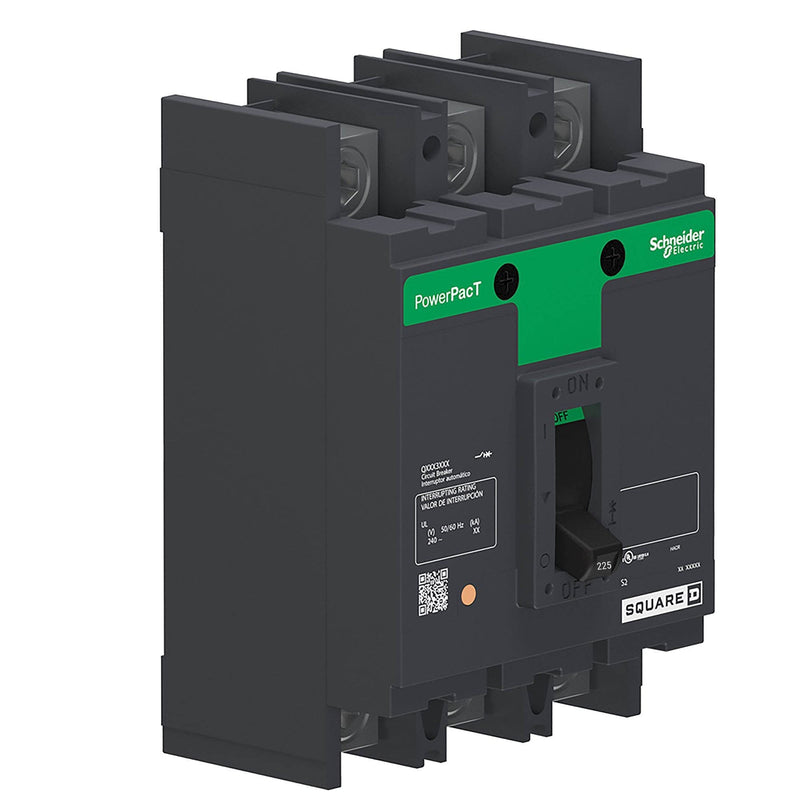

Schneider Electric QBL32225 | PowerPacT Q-Series Molded Case Circuit Breaker

Main Description:

The Schneider Electric QBL32225 is a PowerPacT Q-Series molded case circuit breaker designed for dependable overcurrent protection and switching in 240 VAC systems. With a 225A rating and 3-pole configuration, this breaker delivers thermal magnetic trip protection for long-time and instantaneous response to overloads and short circuits. Designed for unit-mount lug installation, it features an integral push-to-trip button for manual testing and quick mechanical operation. Built for industrial reliability, the QBL32225 meets rigorous safety requirements and supports demanding electrical applications.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: QBL32225

• Product Type: Molded Case Circuit Breaker (PowerPacT Q Series)

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Line Rated Current: 225A

• Poles: 3

• Control Type: Operating handle

• Breaking Capacity Code: B

• Rated Operational Voltage (Ue): 240 VAC, 50/60 Hz

• Network Frequency: 50/60 Hz

• Impulse Withstand Voltage (Uimp): 8 kV UL

• Trip Unit Technology: Thermal Magnetic

• Magnetic Tripping Current: 2400A

• Magnetic Hold Current: 1200A

• Continuous Current Rating: 80%

• Utilization Category: Category A

• Local Signaling: Trip indicator (green)

• Mounting Mode: Unit mount lug

• Mounting Support: Lug

• Tightening Torque: 247.82 lbf·in (28 N·m)

• Wire Stripping Length: 0.87 in (22 mm)

• Height: 6.47 in (164.34 mm)

• Width: 4.5 in (114.30 mm)

• Depth: 3.93 in (99.82 mm)

• Application: HACR rated

• Approvals/Certifications: UL Listed

• Warranty: Standard Schneider Electric Warranty

• Condition: New/Never Used Surplus

Key Features:

• PowerPacT Q-Series design for industrial-grade reliability

• Thermal magnetic trip unit for precise overload and short-circuit protection

• 3-pole configuration for three-phase electrical distribution

• Unit mount lug installation for secure, straightforward mounting

• Integral push-to-trip button for manual safety testing

• HACR rated and suitable for demanding electrical applications
