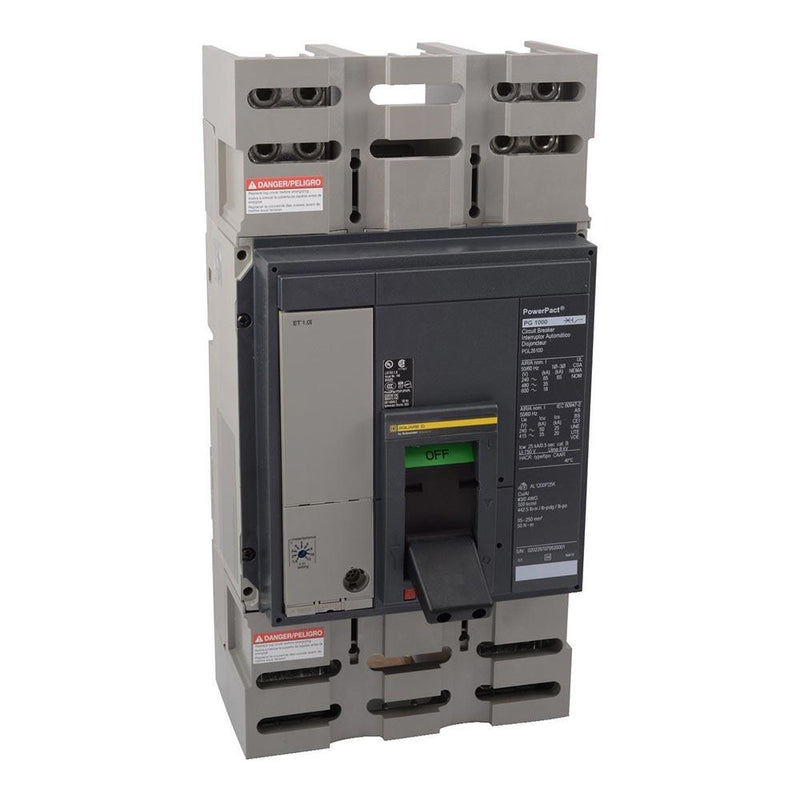

Schneider Electric PJL36120 | PowerPact P-Frame 1200A Molded Case Circuit Breaker

Main Description:

The Schneider Electric PJL36120 is a heavy-duty PowerPact P-Frame molded case circuit breaker engineered for large industrial electrical systems requiring precise, high-capacity protection. Rated at 1200A and 600 VAC, this 3-pole breaker features advanced Electronic Basic ET1.0I trip technology, delivering fixed long-time and adjustable instantaneous trip functions for accurate, responsive overload and short-circuit protection. Its lug connection design supports large wire sizes up to 500 kcmil, and its robust construction ensures long-term reliability in demanding environments. With interrupt ratings of 25/65/100 kA, the PJL36120 provides exceptional fault-handling capability for mission-critical installations.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: PJL36120

• Product Type: Molded Case Circuit Breaker (PowerPact P Series)

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Series: PJL

• Frame Type: P Frame

• Voltage Rating: 600 VAC

• Amperage Rating: 1200 A

• Trip Range: 100 to 1200 A

• Trip Type: Electronic Basic ET1.0I (Fixed Long-Time / Adjustable Instantaneous)

• Actuator Type: Electronic

• Number of Poles: 3

• Phase: 3

• Frequency Rating: 50/60 Hz

• Interrupt Rating: 25/65/100 kA

• Connection Type: Lug

• Wire Size Compatibility: 3/0 AWG to 500 kcmil

• Dimensions: 8.1 in L × 8.3 in W × 16.2 in H

• Temperature Rating: 40°C

• Approvals/Certifications: UL Listed (implied for PowerPact P Series unless otherwise specified)

• Condition: New/Never Used Surplus

Key Features:

• High-capacity 1200A P-Frame breaker for large industrial systems

• Advanced electronic trip technology for precise protection

• Fixed long-time and adjustable instantaneous trip settings

• Exceptional interrupt ratings: 25/65/100 kA

• Lug connection supports large wire sizes (3/0 AWG to 500 kcmil)

• Robust construction suitable for heavy-duty environments

• UL-compliant and designed for code-required industrial applications
