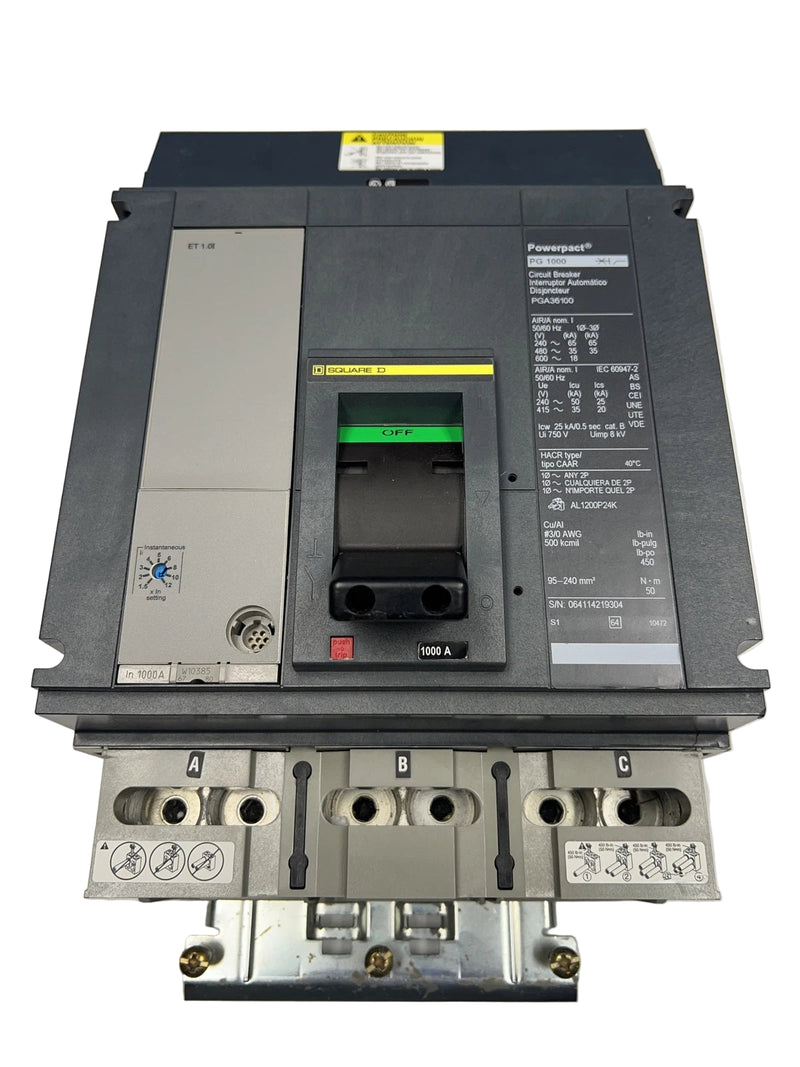

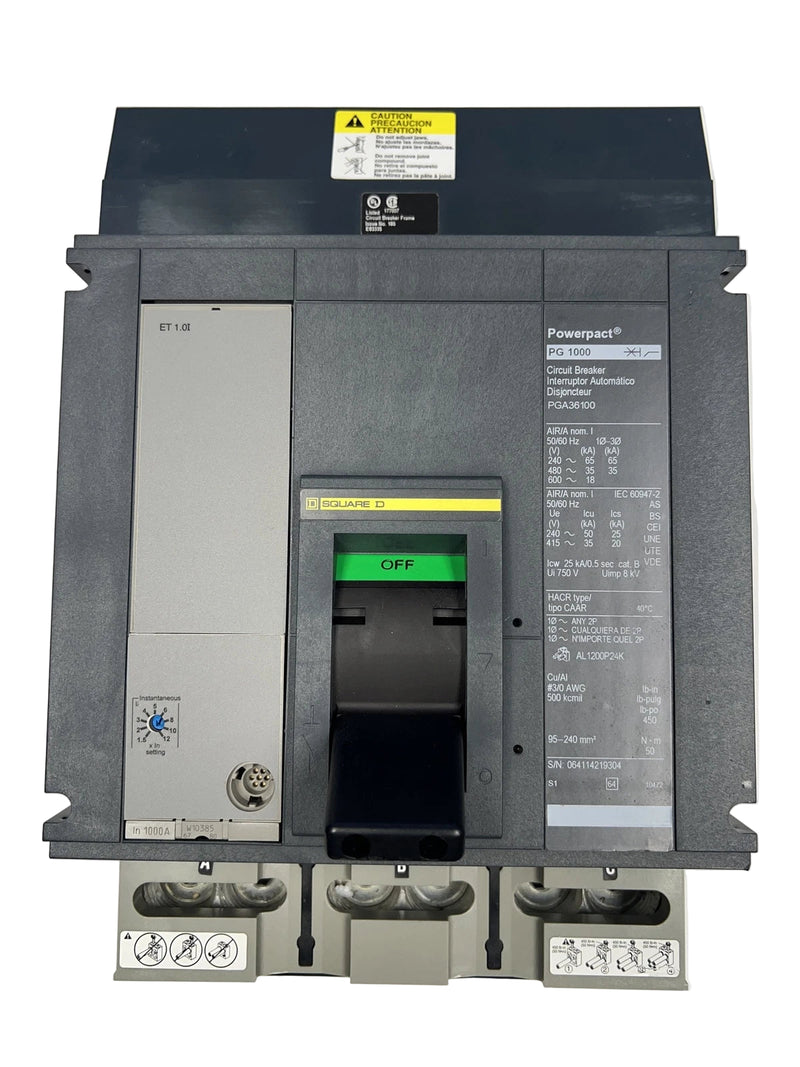

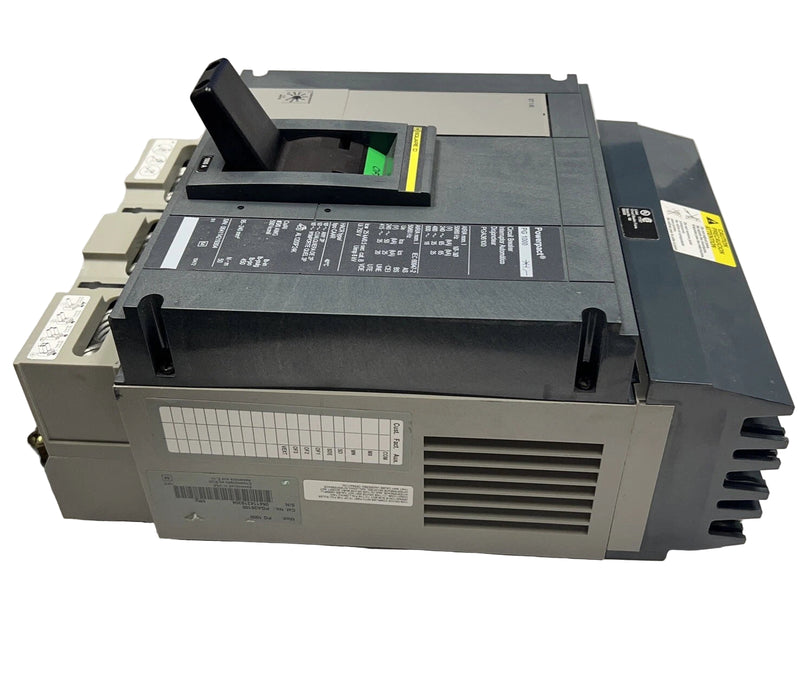

Schneider Electric PGA36100 | 1000 Amp 3-Pole PowerPacT P-Frame Circuit Breaker

Main Description:

The Schneider Electric PGA36100 is a heavy-duty PowerPacT P-Frame circuit breaker engineered for reliable protection against overloads and short circuits in demanding electrical distribution systems. With a 1000A rating and 600VAC operating voltage, it incorporates the ET 1.0I fixed long-time electronic trip unit for precise and dependable fault response. Designed with I-Line terminations on the line side and mechanical lugs on the load side, the PGA36100 ensures secure connectivity and simplified installation. Ideal for industrial and commercial distribution applications requiring durable, code-compliant electrical protection.

Technical Overview:

• Manufacturer: Schneider Electric / Square D

• Part Number: PGA36100

• Series / Family: PowerPacT P

• Category: Molded Case Circuit Breaker

• Type: P-Frame

• Poles: 3

• Amperage Rating: 1000 Amps

• Voltage Rating: 600 VAC

• Interrupting Rating: 18 kA @ 600VAC

• Trip Unit Technology: Electronic – ET 1.0I (Fixed Long-Time)

• Continuous Current Rating: 80%

• Breaking Capacity Code: G

• Connection Type: I-Line (line) / Mechanical Lugs (load)

• Mounting Mode: I-Line Bracket

• Approvals/Certifications: UL Listed, IEC Compliant

• AWG Range: 4 × AWG 3/0…500 kcmil

• Net Weight: 32 lb (14.5 kg)

• Condition: New/Never Used Surplus

Key Features:

• Robust 1000A protection for high-capacity distribution systems

• ET 1.0I electronic trip unit ensures accurate overload response

• I-Line line-side termination for fast, secure installation

• Push-to-trip button allows manual operation

• Compatible with unit mount, I-Line, and drawout configurations

• Durable molded-case construction designed for industrial service
