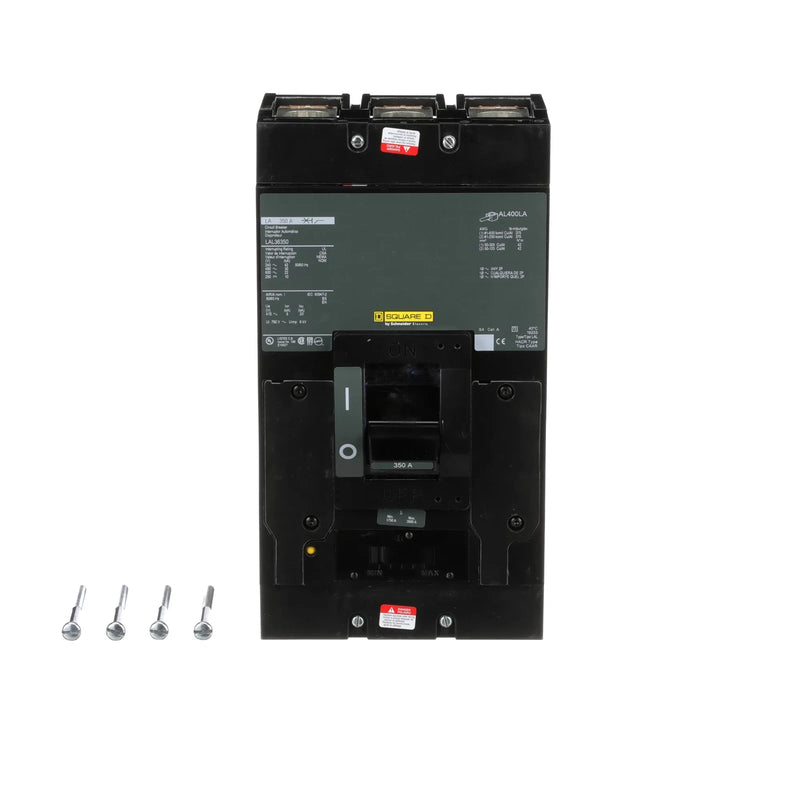

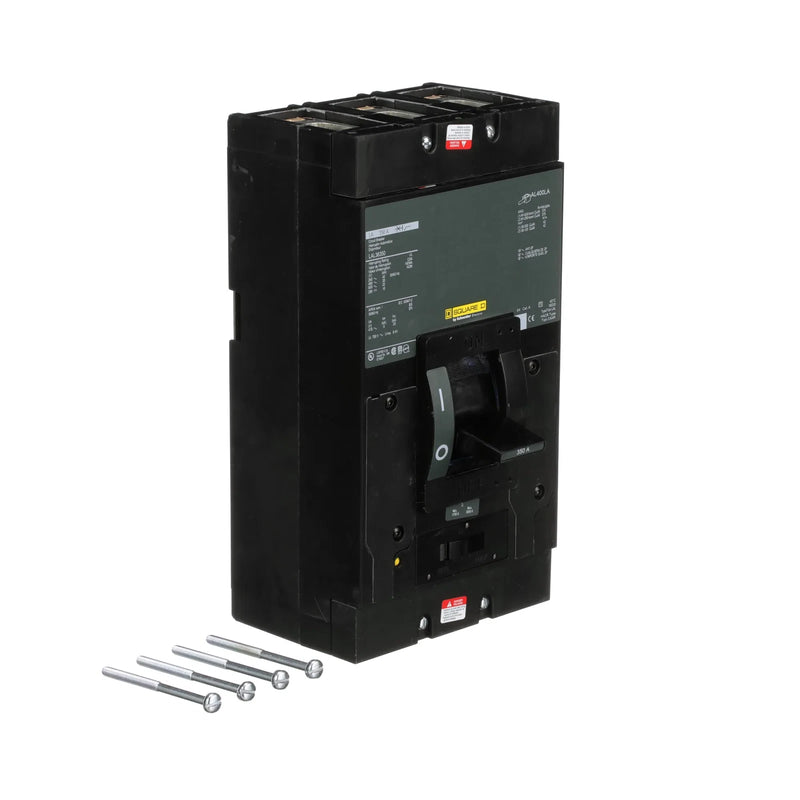

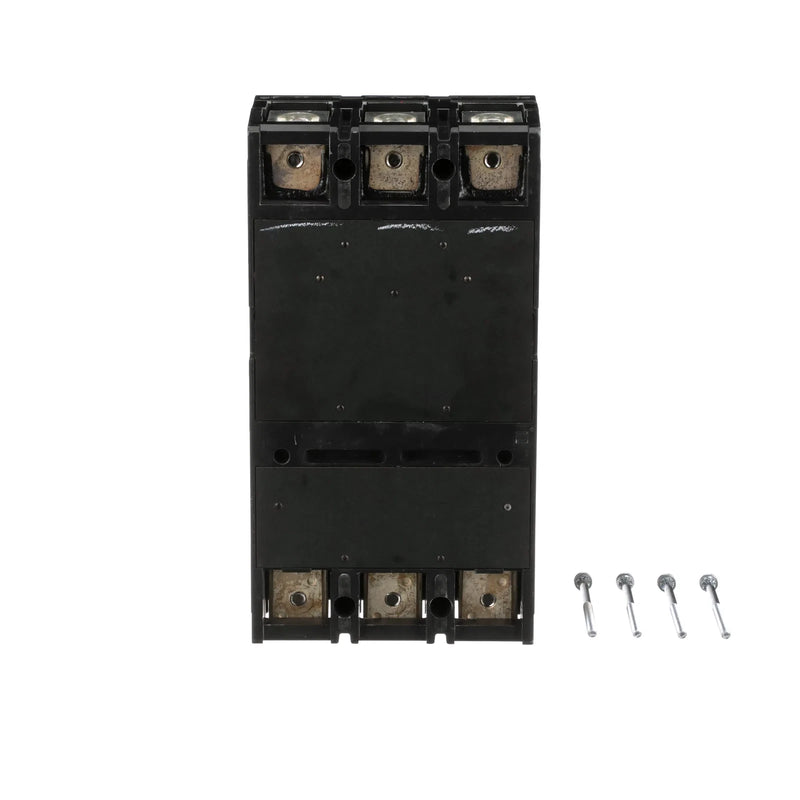

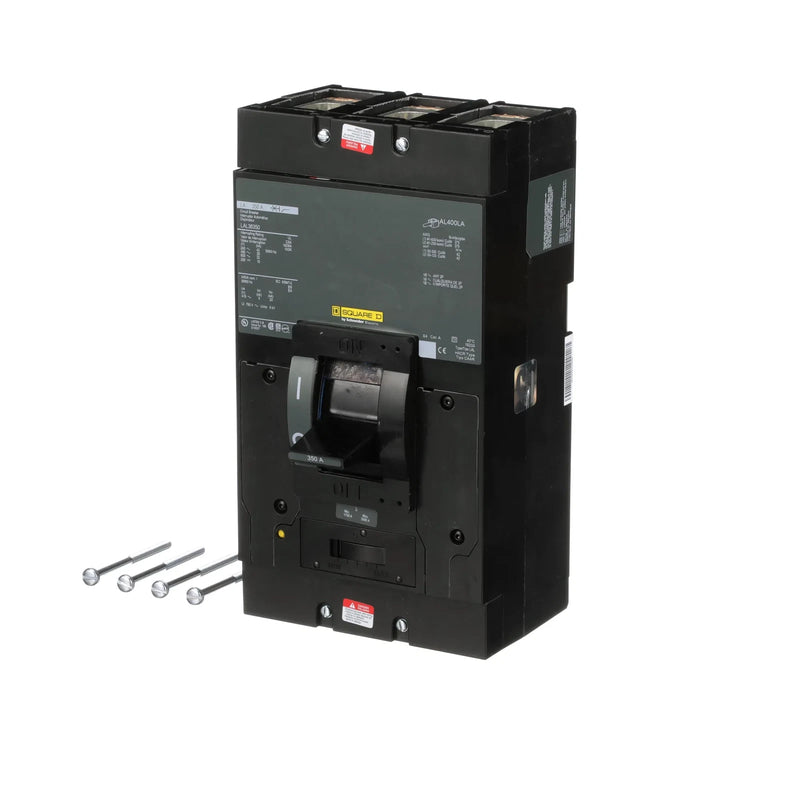

Schneider Electric LAL36350 | 350A 3-Pole LAL Series Circuit Breaker

Main Description:

The Schneider Electric LAL36350 is a heavy-duty L-Frame molded case circuit breaker engineered for reliable protection in commercial and industrial electrical systems. Rated at 350 amps and 600 volts, this breaker delivers dependable thermal-magnetic protection with long-time and instantaneous trip functions to ensure safe interruption of overloads and short-circuit events. Designed with a feed-thru connection style and rugged line and load lugs, the LAL36350 integrates securely into panelboards, switchboards, and distribution equipment. With a 30 kA interrupting rating at 480V, the breaker provides robust fault protection and meets UL performance requirements for standard-duty industrial applications.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: LAL36350

• Type: LAL

• Family: LAL Series

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Voltage Rating: 600 VAC

• Amperage Rating: 350A

• Poles: 3

• Phase: 3-Phase

• Connection Type: Feed-Thru (Line & Load Lugs)

• Protection Type: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Frame Type: L Frame

• Interrupting Rating: 30 kA @ 480V

• Approvals/Certifications: UL Listed

• Condition: New/Never Used Surplus

• Weight: 22 lb (9.98 kg)

Key Features:

• Reliable thermal-magnetic protection with LI trip functions

• L-Frame construction provides industrial-grade durability

• Feed-thru connection supports secure panel and switchboard installations

• 30 kA interrupting rating at 480V for strong fault protection

• Long-time and instantaneous trip characteristics for precise overload and short-circuit response

• Suitable for demanding commercial and industrial environments

• UL listed for code-compliant installations
