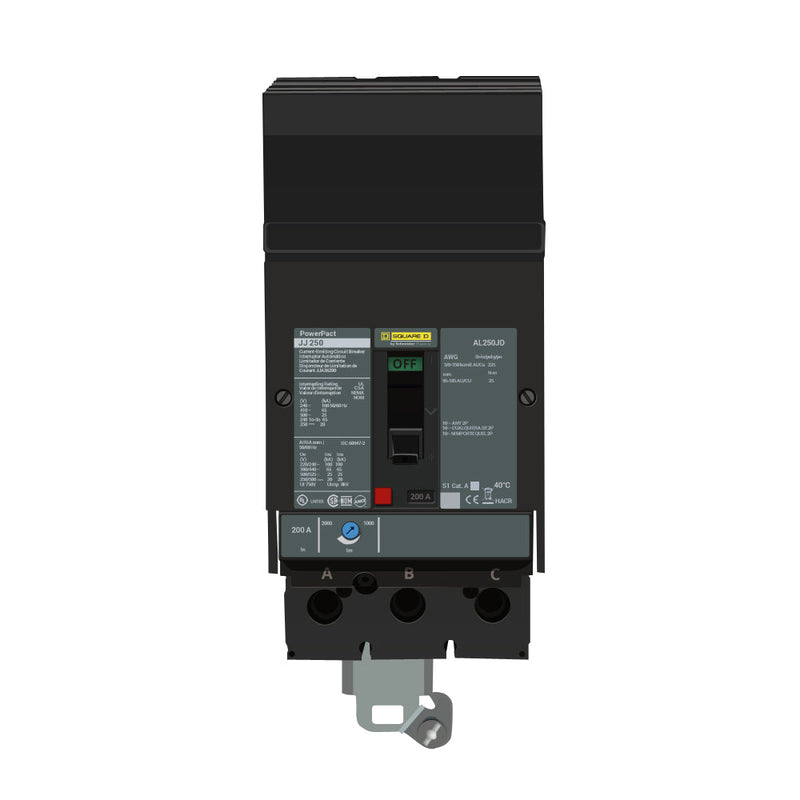

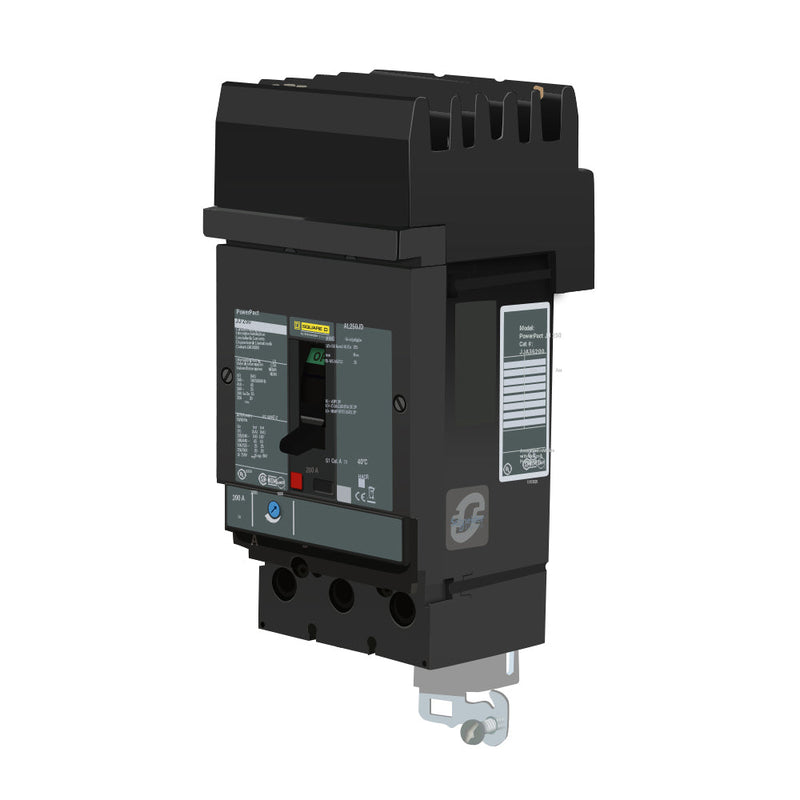

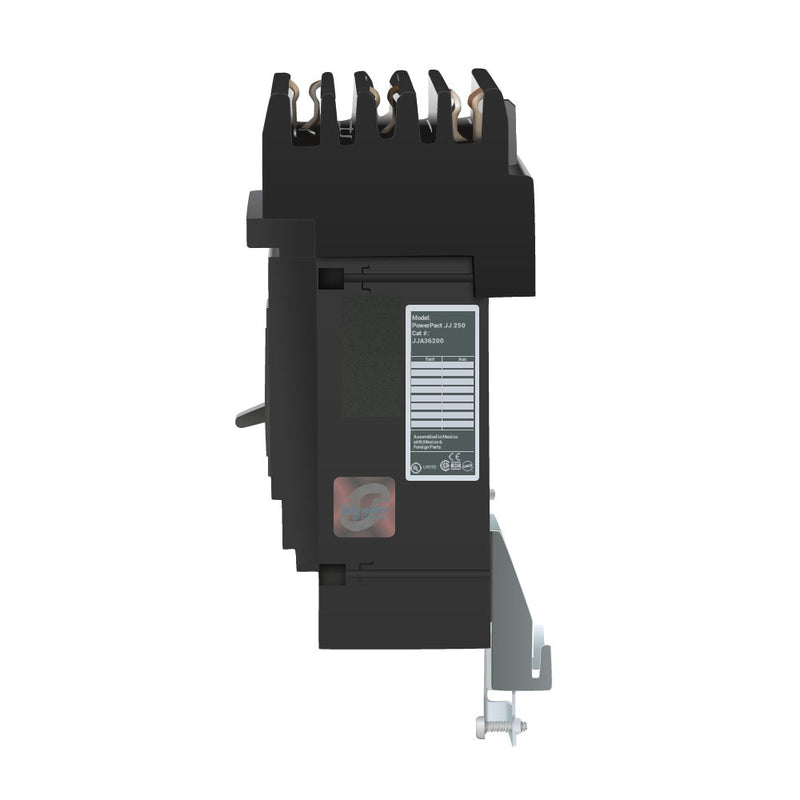

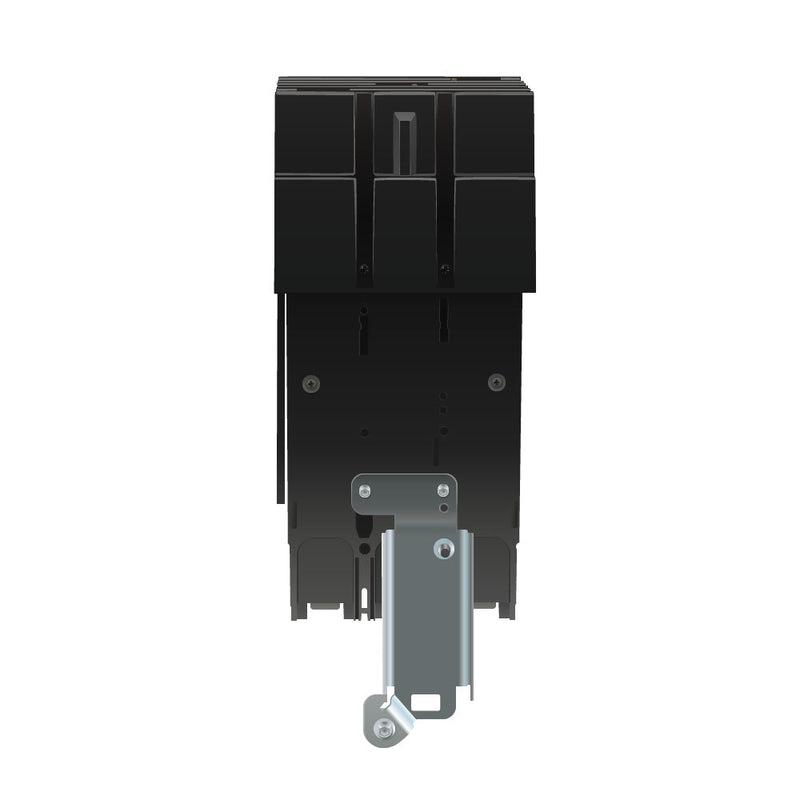

Schneider Electric JDA36200 | 200A 600V 3-Pole PowerPacT J I-Line Circuit Breaker

Main Description:

The Schneider Electric JDA36200 is a 200A, 3-pole molded case circuit breaker from the PowerPacT J series, engineered to provide reliable protection against overloads and short circuits. Designed for 600 VAC applications, it incorporates thermal-magnetic trip technology for precise fault response. With a breaking capacity of 14 kA at 600 VAC and dual-break rotating contacts, the JDA36200 ensures reduced peak fault currents and dependable operation. This model features an I-Line plug-on connection for the line side and mechanical lugs on the load side, making it ideal for commercial and industrial distribution systems.

Technical Overview:

• Manufacturer: Schneider Electric

• Brand: Square D

• Part Number: JDA36200

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Condition: New/Never Used Surplus

• Family: PowerPacT J

• Type: JDA

• Voltage Rating: 600 VAC

• Amperage Rating: 200 A

• Poles: 3

• Phase: 3

• Protection: Thermal Magnetic

• Trip Technology: Thermal-Magnetic (LI – Long-Time & Instantaneous)

• Interrupting Rating: 14 kA @ 600 VAC

• Rated Operational Voltage: 600 VAC 50/60 Hz

• Rated Insulation Voltage: 750 V

• Rated Impulse Withstand Voltage: 8 kV

• Continuous Current Rating: 80%

• Magnetic Tripping Current: 2000 A

• Magnetic Hold Current: 1000 A

• AWG Range: 3/0…350 kcmil Cu/Al

• Terminals: AL250JD (load side)

• Line Connection: I-Line plug-on

• Load Connection: Mechanical lugs

• Control Type: Toggle

• Mounting Type: I-Line bracket

• Application: Distribution line, HACR rated

• Long-Time Pickup Adjust: 0.25–1× In

Key Features:

• High-performance PowerPacT J-Frame breaker

• I-Line plug-on connection for quick installation

• 200A, 600V 3-pole industrial protection

• Thermal-magnetic LI trip functionality

• 14 kA interrupt rating at 600 VAC

• Dual-break rotating contacts to reduce peak fault currents

• Integral push-to-trip button for manual interruption

• Suitable for isolation under IEC 60947-2

• UL, CSA, NOM, IEC compliant
