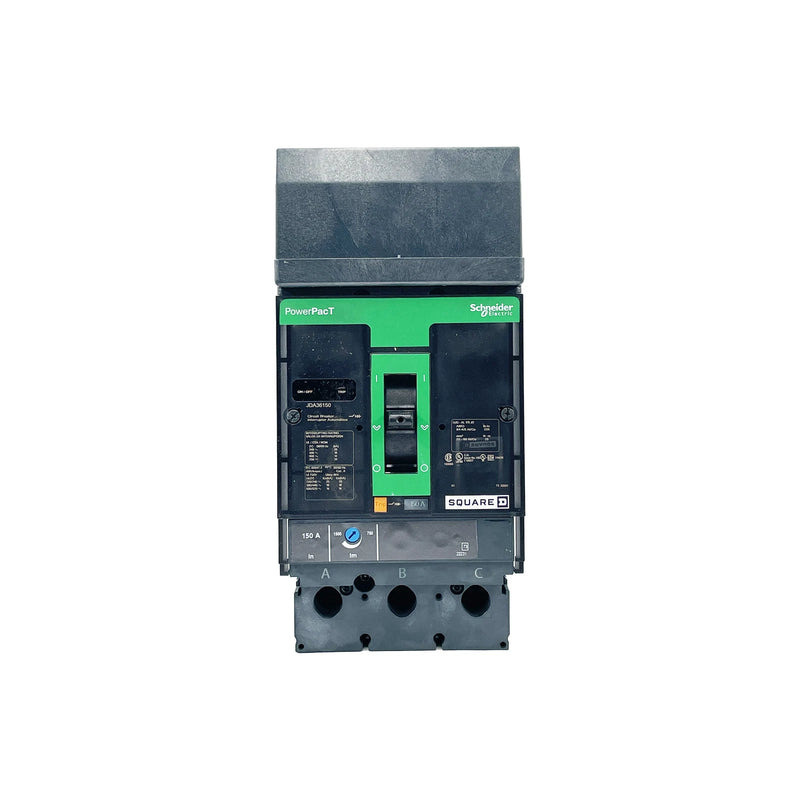

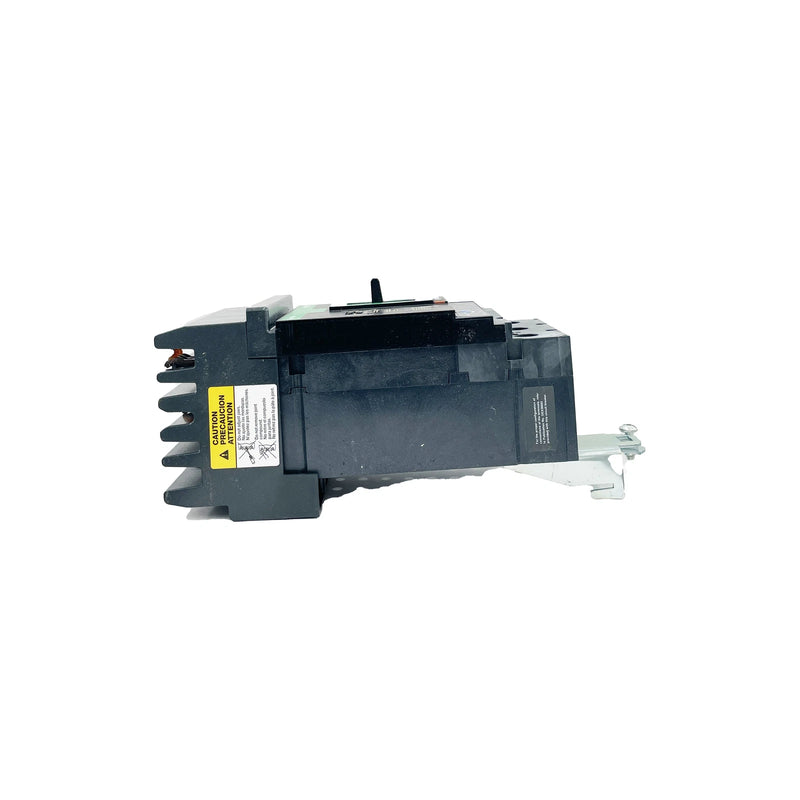

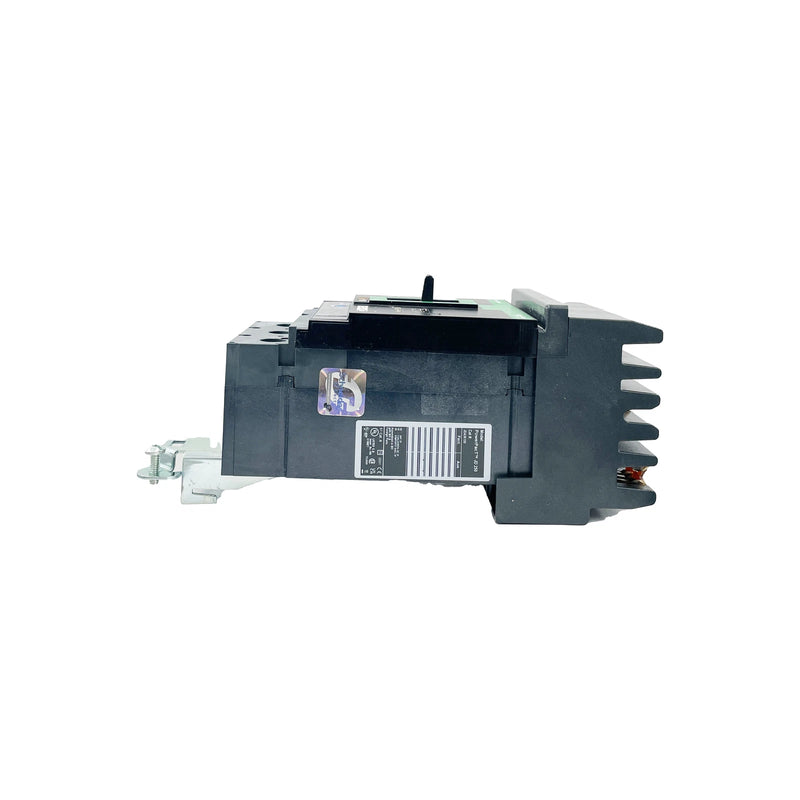

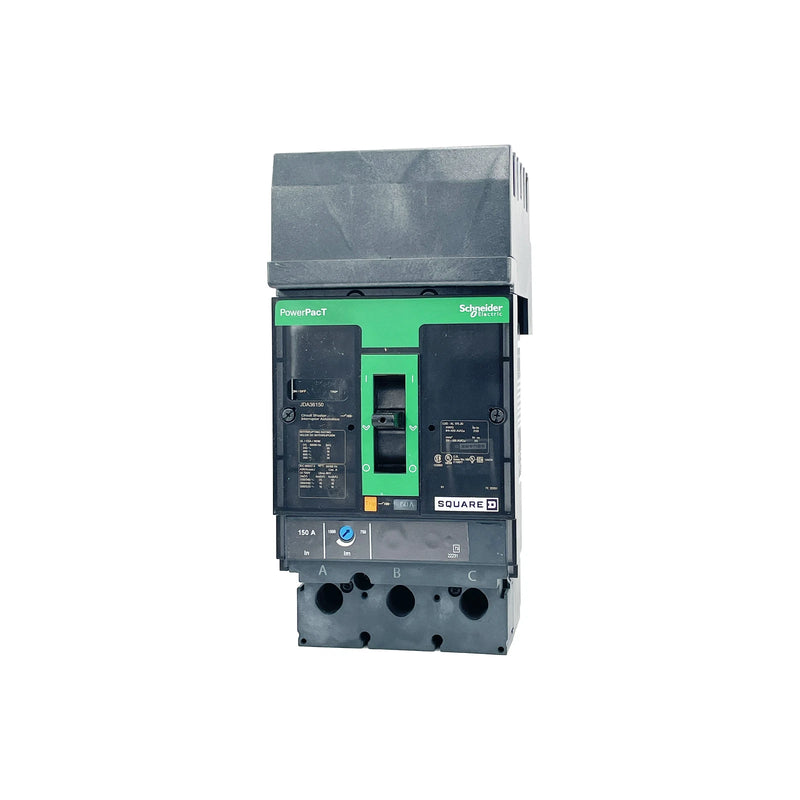

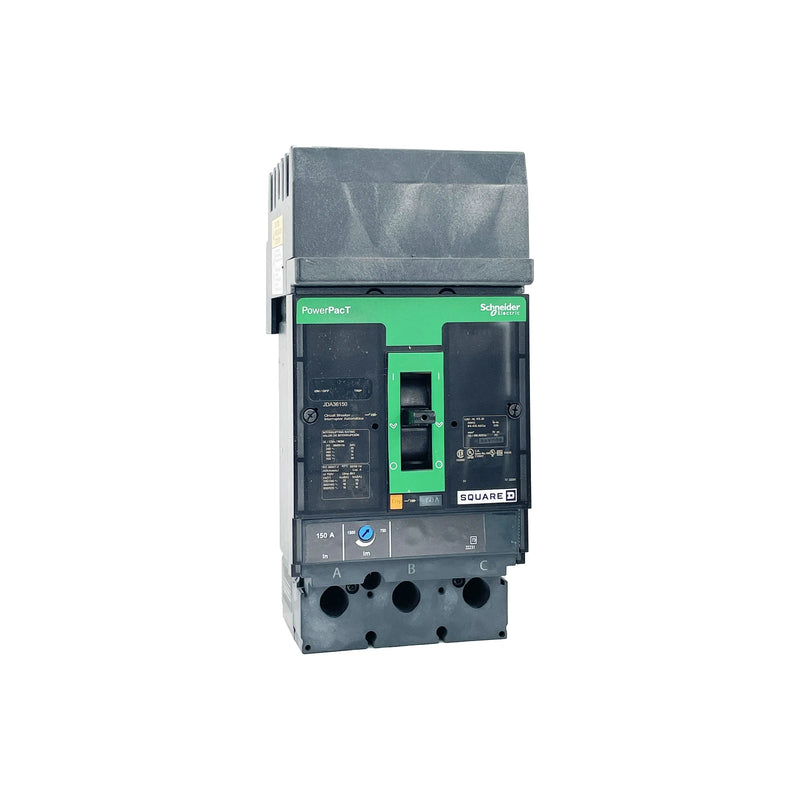

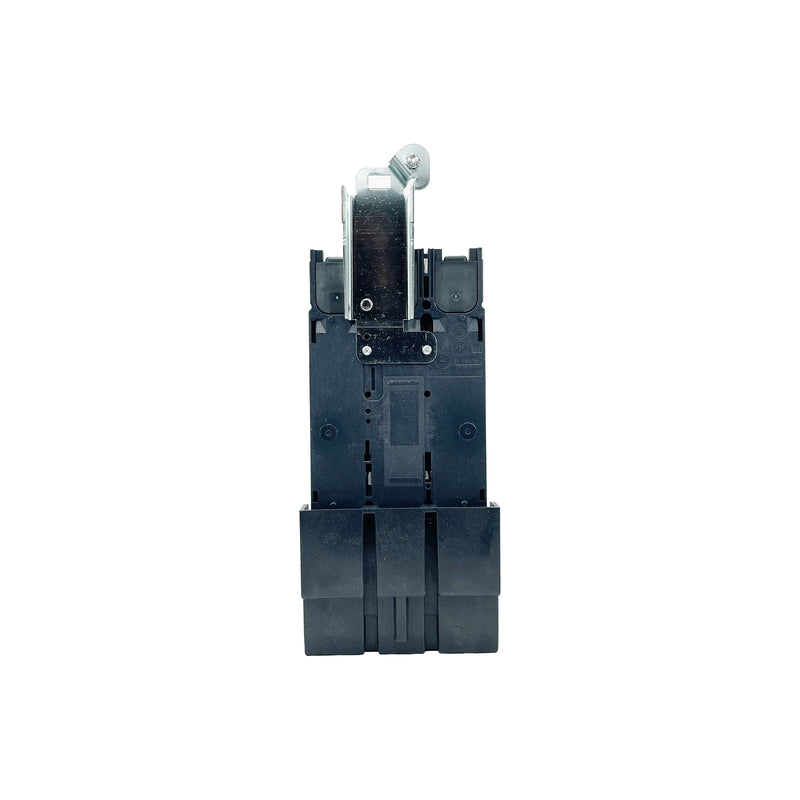

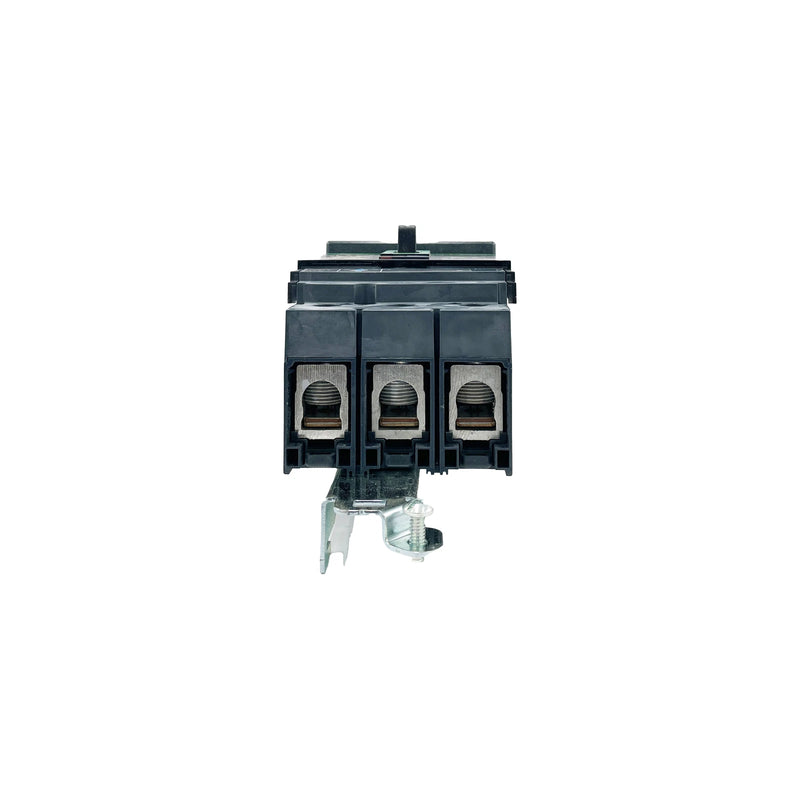

Schneider Electric JDA36150 | 150 Amp 3-Pole PowerPacT J-Frame Circuit Breaker

Main Description:

The Schneider Electric JDA36150 PowerPacT J-Frame Circuit Breaker provides dependable overload and short-circuit protection for commercial and industrial electrical systems. With a 150A rating, 600VAC operating voltage, and a 14kA interrupting capacity, it delivers reliable thermal-magnetic protection in demanding applications. This model features dual-break rotating contacts that reduce peak fault currents for enhanced system safety. Designed with I-Line mounting, the JDA36150 supports quick, secure installation and long-term durability.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: JDA36150

• Type: PowerPacT J-Frame

• Poles: 3

• Amperage Rating: 150 Amps

• Voltage Rating: 600 VAC

• Interrupting Rating: 14 kA @ 600 VAC

• Trip Unit: Thermal-Magnetic

• Magnetic Hold Current: 750 Amps

• Magnetic Trip Current: 1750 Amps

• Continuous Current Rating: 80%

• Connection Type: I-Line (line) / Lugs (load)

• Breaker Family: PowerPacT J Series

• Approvals/Certifications: UL, CSA, NOM, IEC

• Dimensions (HxWxD): 7.52 in × 4.09 in × 3.39 in

• Net Weight: 5.29 lb (2.4 kg)

• Condition: New/Never Used Surplus

Key Features:

• Reliable thermal-magnetic protection with 14kA interrupt capacity

• Dual-break rotating contacts reduce peak short-circuit currents

• I-Line mounting for fast, safe installation and removal

• Push-to-trip button for manual tripping and testing

• Suited for industrial and commercial distribution equipment

• Wide wire-range compatibility for installation flexibility

• Designed to meet modern electrical safety standards
