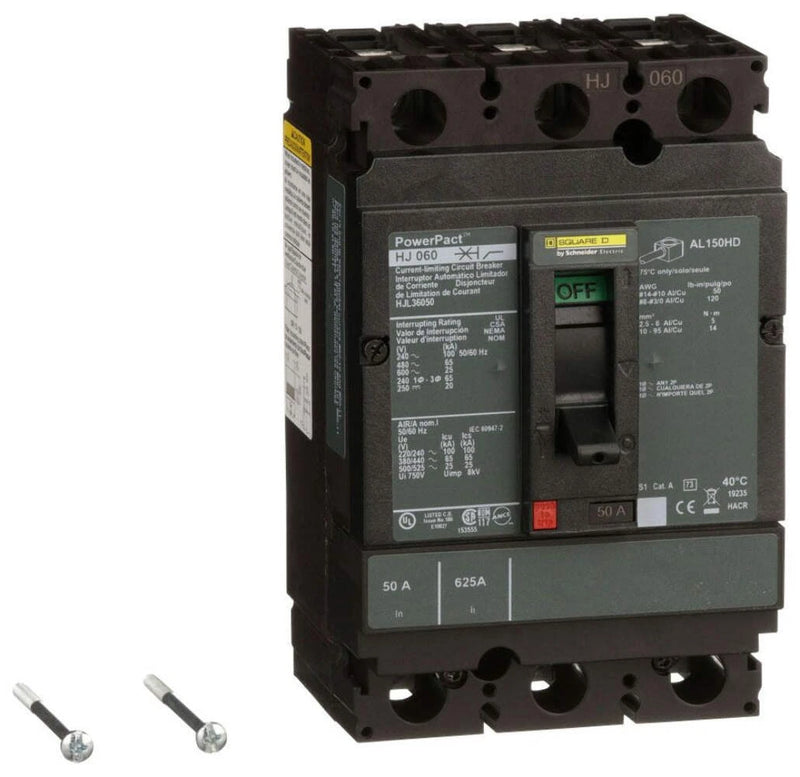

Schneider Electric HJL36050 | PowerPact H-Frame 50A Molded Case Circuit Breaker

Main Description:

The Schneider Electric HJL36050 is a rugged PowerPact H-Frame molded case circuit breaker designed to protect electrical distribution systems from overloads and short circuits. Featuring thermal-magnetic trip protection and a 25 kA interrupt rating at 600 VAC, this breaker provides dependable performance in demanding commercial and industrial environments. Equipped with dual-break rotating contacts, the HJL36050 reduces peak fault currents while enhancing system safety. This 50A, 3-pole breaker includes lugs on both the line and load sides and incorporates an integral push-to-trip button for manual operation.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: HJL36050

• Product Type: Molded Case Circuit Breaker (PowerPact H Series)

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Range: PowerPact

• Product Name: PowerPact H

• Application: Distribution

• Amperage Rating: 50 A

• Number of Poles: 3

• Protected Poles Description: 3t

• Control Type: Toggle

• Breaking Capacity Code: J

• Interrupting Capacity: 25 kA @ 600 VAC

• Rated Operational Voltage (Ue): 690 VAC, 50/60 Hz

• Network Frequency: 50/60 Hz

• Impulse Withstand Voltage (Uimp): 8 kV

• Trip Unit Technology: Thermal-Magnetic

• Magnetic Tripping Current: 850 A

• Magnetic Hold Current: 400 A

• Continuous Current Rating: 80%

• Rated Insulation Voltage (Ui): 750 V

• Suitability for Isolation: Yes

• Utilization Category: Category A

• Connection Type: Lugs (line and load)

• Terminal Identifier: AL150HD

• AWG Compatibility: AWG 14 to AWG 3/0 (Al/Cu)

• Wire Stripping Length: 0.63 in (16 mm)

• Color: Black

• Dimensions:

  • Height: 6.42 in (163 mm)

  • Width: 4.09 in (104 mm)

  • Depth: 3.39 in (86 mm)

• Net Weight: 4.85 lb (2.2 kg)

• Approvals/Certifications: UL Listed (implied for PowerPact H series)

• Condition: New/Never Used Surplus

Key Features:

• PowerPact H-Frame durability for industrial and commercial systems

• Thermal-magnetic protection with 25 kA interrupt rating

• Dual-break rotating contacts reduce peak fault current

• 3-pole design with line and load lugs included

• Integral push-to-trip button for manual testing

• Suitable for distribution applications and code-compliant installations
