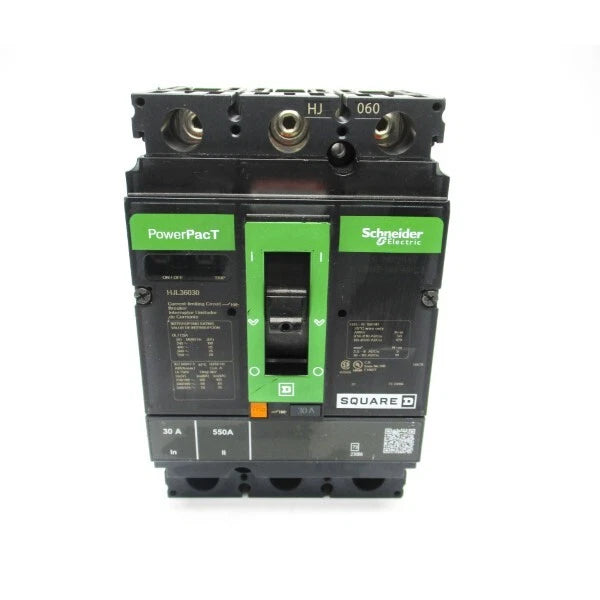

Schneider Electric HJL36030 | 30A 3-Pole PowerPact HJL Circuit Breaker

Main Description:

The Schneider Electric HJL36030 is a high-performance PowerPact H-Frame molded case circuit breaker designed for reliable protection of industrial and commercial electrical systems. Rated at 30 amps and 600 volts, this breaker combines long-time and instantaneous thermal-magnetic protection to ensure dependable interruption of overloads and short circuits. Built with a rugged H-Frame design and engineered for feed-thru applications, the HJL36030 includes secure line and load lug terminals and is suitable for reverse-feed installations. With a high interrupting capacity of 65 kA at 480V and UL listing, this breaker delivers the robust safety, durability, and code compliance required in demanding environments.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: HJL36030

• Type: HJL

• Family: PowerPact

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Voltage Rating: 600 VAC

• Amperage Rating: 30A

• Poles: 3

• Phase: 3-Phase

• Frame Type: H Frame

• Connection Type: Feed-Thru (Line & Load Lugs)

• Protection Type: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Interrupting Rating: 65 kA @ 480V

• Approvals/Certifications: UL Listed

• Condition: New/Never Used Surplus

• Weight: 4.85 lb (2.20 kg)

Key Features:

• Provides reliable thermal-magnetic protection for overloads and short circuits

• Current-limiting performance with 65 kA interrupting capability

• Durable H-Frame construction for long-term industrial service

• Feed-thru design with secure line and load lug terminals

• Suitable for reverse-fed applications

• UL listed for code-compliant installations

• Long-time and instantaneous trip characteristics ensure precise protection
