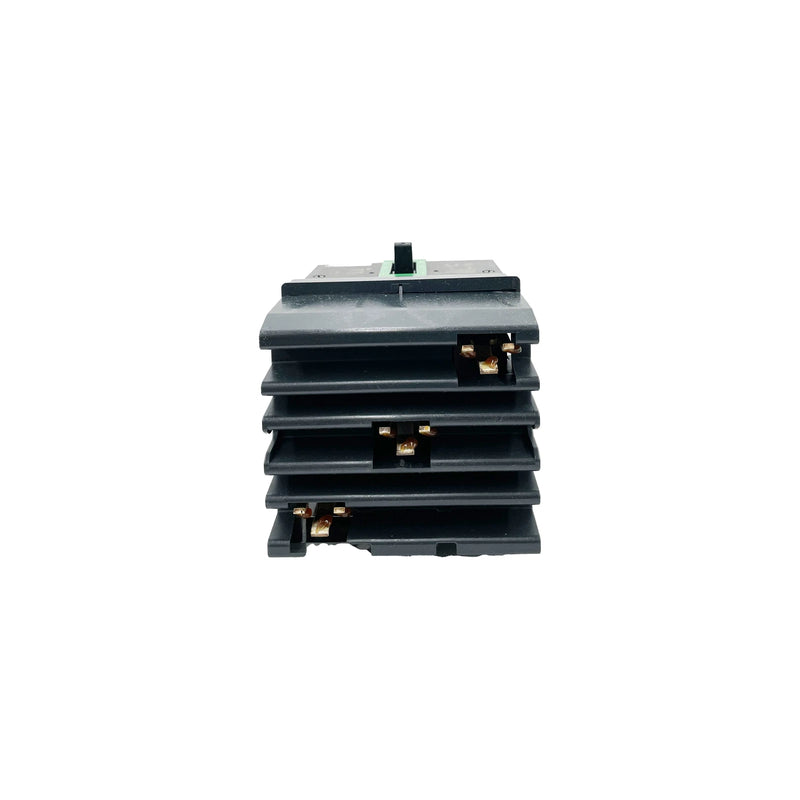

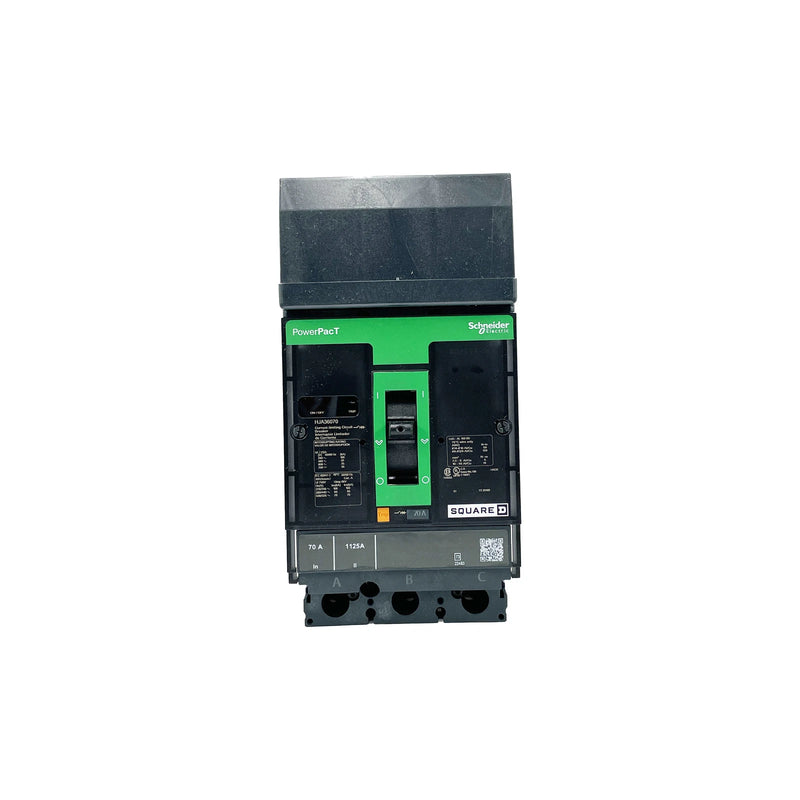

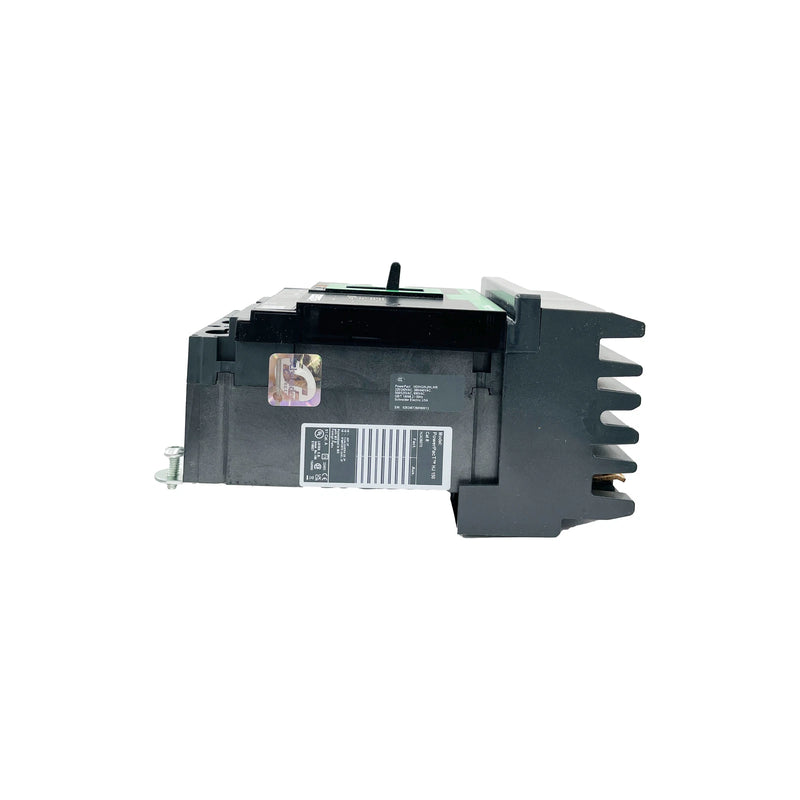

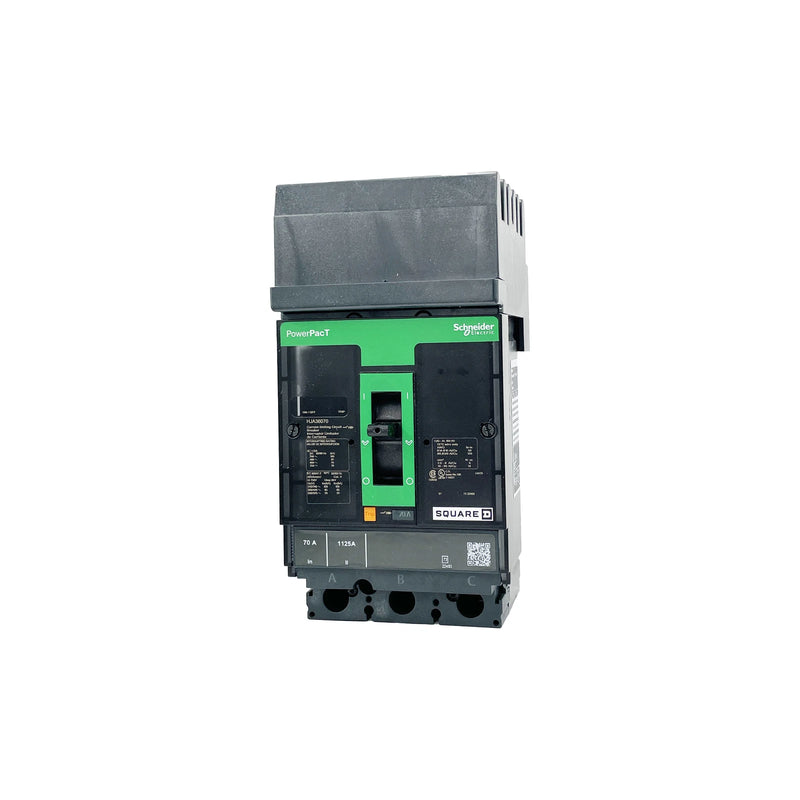

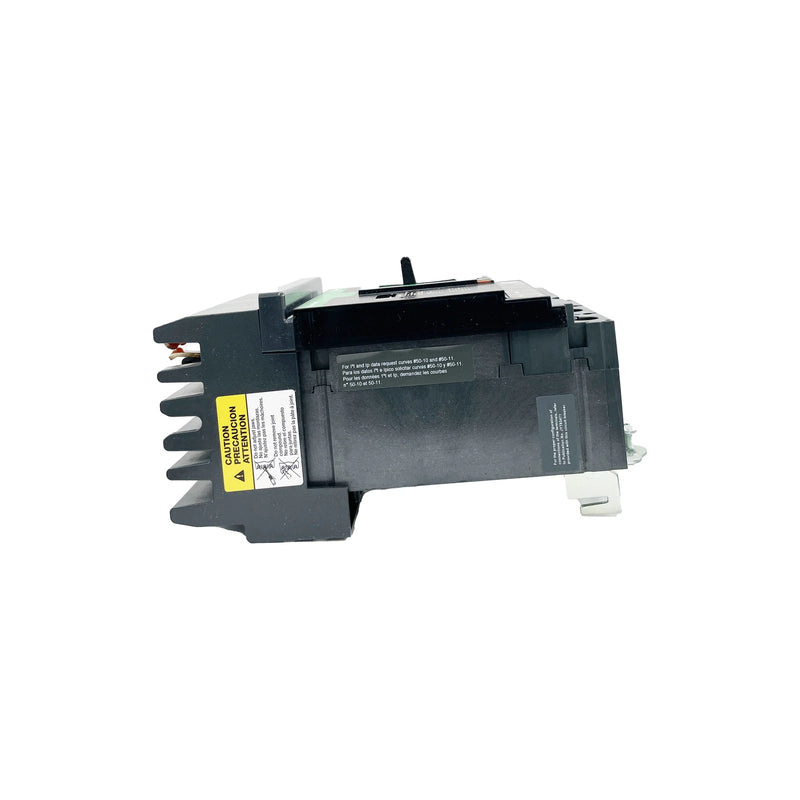

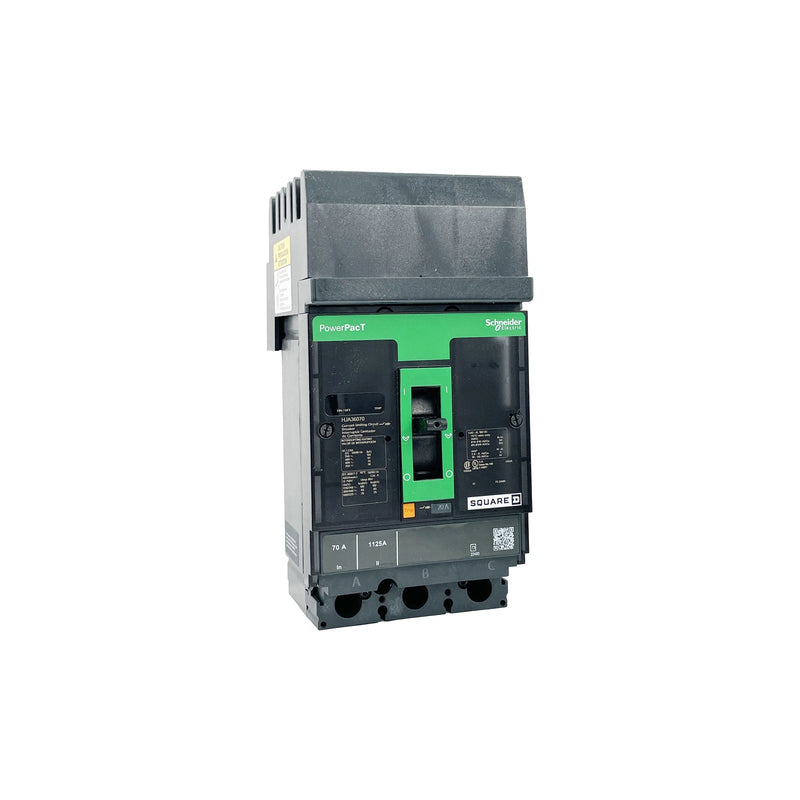

Schneider Electric HJA36070 | PowerPact H-Frame 70A Molded Case Circuit Breaker

Main Description:

The Schneider Electric HJA36070 is a rugged PowerPact H-Frame molded case circuit breaker engineered to deliver reliable overload and short-circuit protection in industrial and commercial electrical systems. Rated at 70A and 600 VAC, this breaker features a high interrupting capacity of 25 kA, making it suitable for demanding applications. Its thermal magnetic LI (Long-Time and Instantaneous) trip unit ensures dependable protection, while dual-break rotating contacts minimize peak fault currents. Built for I-Line panelboard systems, the HJA36070 installs quickly and securely, supporting efficient maintenance and long-term durability.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: HJA36070

• Product Type: Molded Case Circuit Breaker

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Family: PowerPact H

• Range: PowerPact

• Type: HJA

• Frame Type: H Frame

• Voltage Rating: 690 VAC (IEC) / 600 VAC (UL)

• Amperage Rating: 70 A

• Phase: 3

• Poles: 3

• Interrupting Rating: 25 kA @ 600 VAC

• Protection: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Magnetic Tripping Current: 1450 A

• Magnetic Hold Current: 800 A

• Continuous Current Rating: 80%

• Rated Insulation Voltage (Ui): 750 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Utilisation Category: Category A

• AWG Range: AWG 14 to AWG 3/0 (Cu/Al)

• Local Signaling: Trip indicator (green)

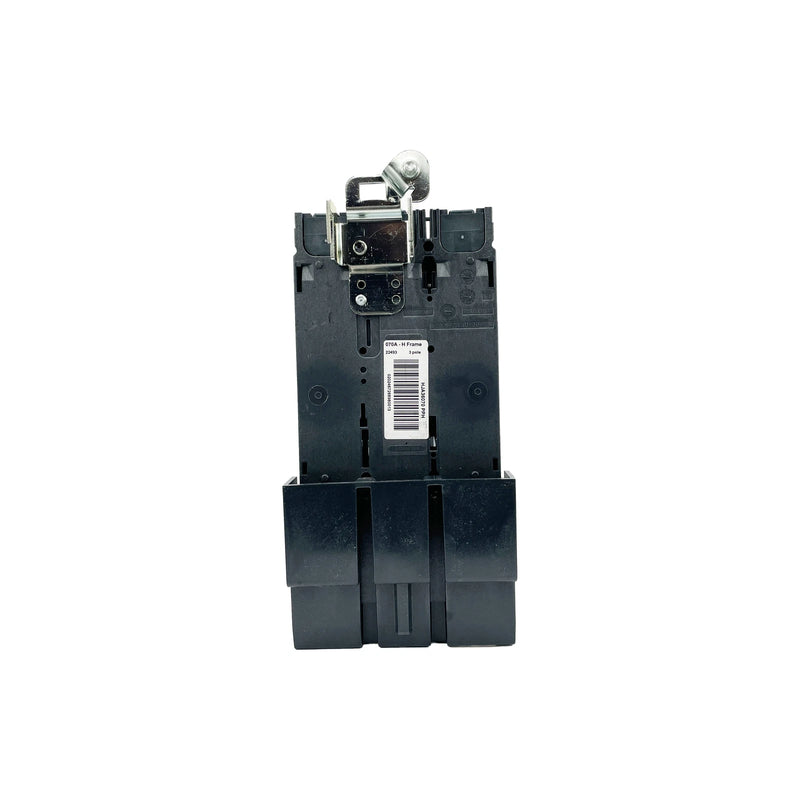

• Mounting Mode: I-Line Bracket

• Mounting Support: Bracket

• Electrical Connections:

  • Line: I-Line plug-in

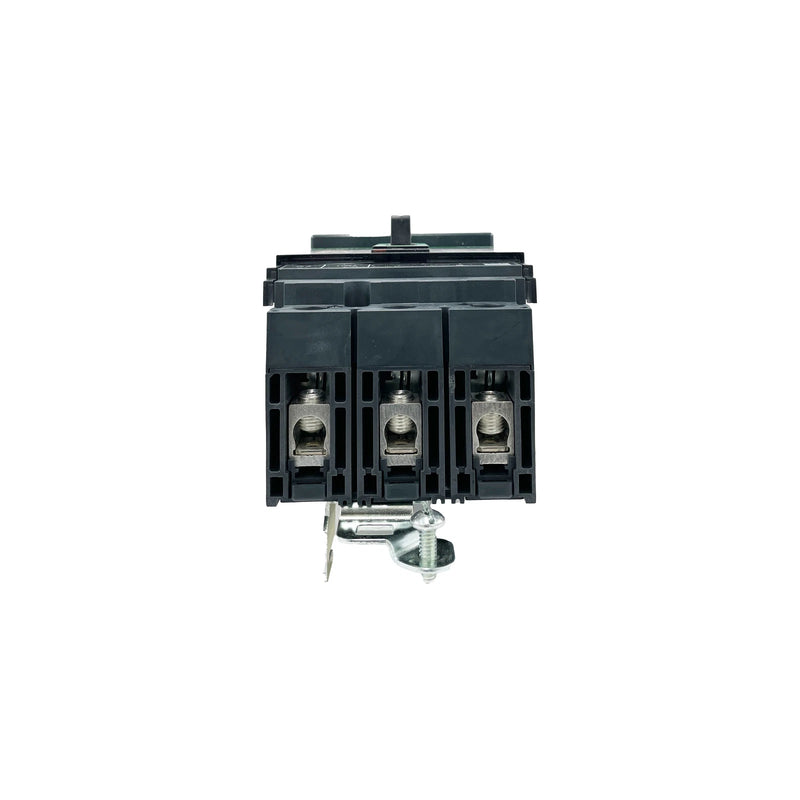

  • Load: Mechanical lugs (AL150HD)

• Dimensions:

  • Height: 6.42 in (163 mm)

  • Width: 4.09 in (104 mm)

  • Depth: 3.39 in (86 mm)

• Net Weight: 4.85 lb (2.2 kg)

• Phase Connection: ABC

• Color: Black

• Communication Interface: Modbus / Ethernet

• Certifications: UL, CSA, NOM, IEC, CE

• Application: HACR Rated

• Condition: New/Never Used Surplus

Key Features:

• 70A, 3-pole high-performance H-Frame molded case circuit breaker

• High interrupting capacity of 25 kA at 600 VAC

• Thermal magnetic LI protection for overload and short-circuit events

• Dual-break rotating contacts reduce peak short-circuit currents

• I-Line plug-in construction for fast, secure installation

• Integral push-to-trip button for manual testing

• Rugged industrial-grade design suitable for harsh environments

• Supports Modbus/Ethernet communication configurations in compatible systems
