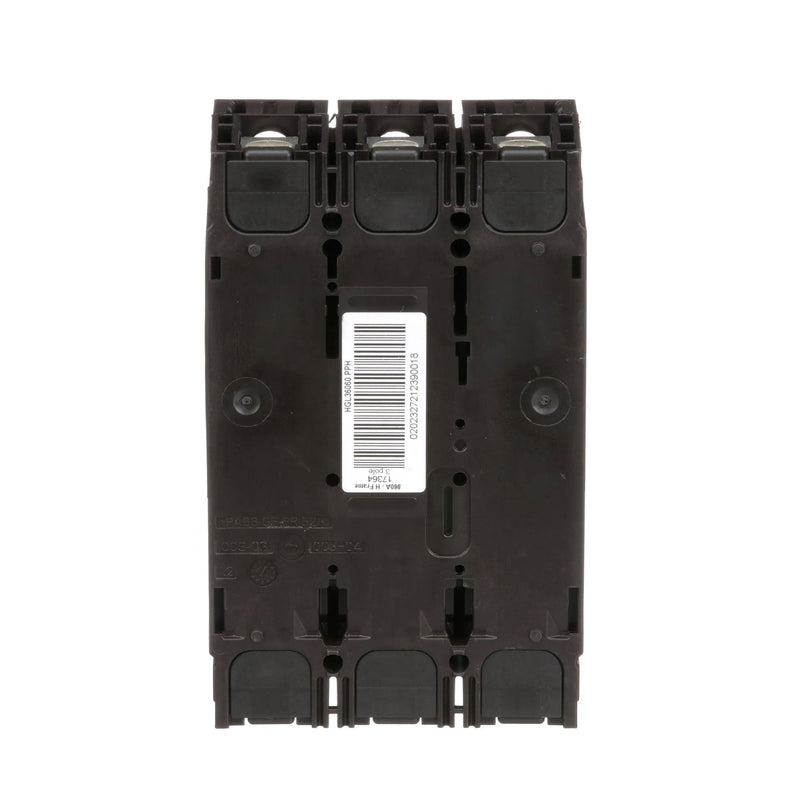

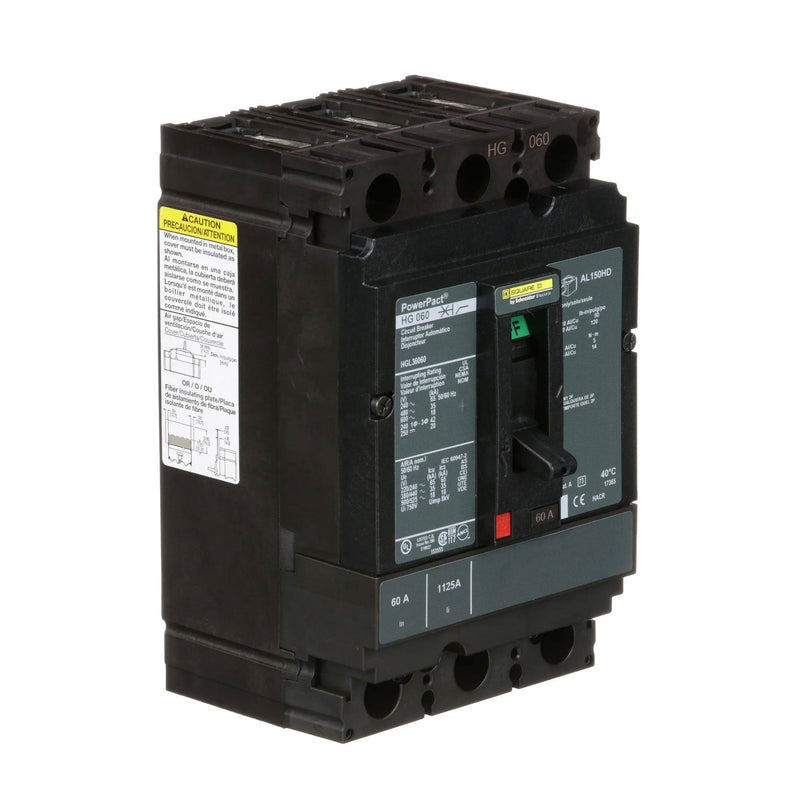

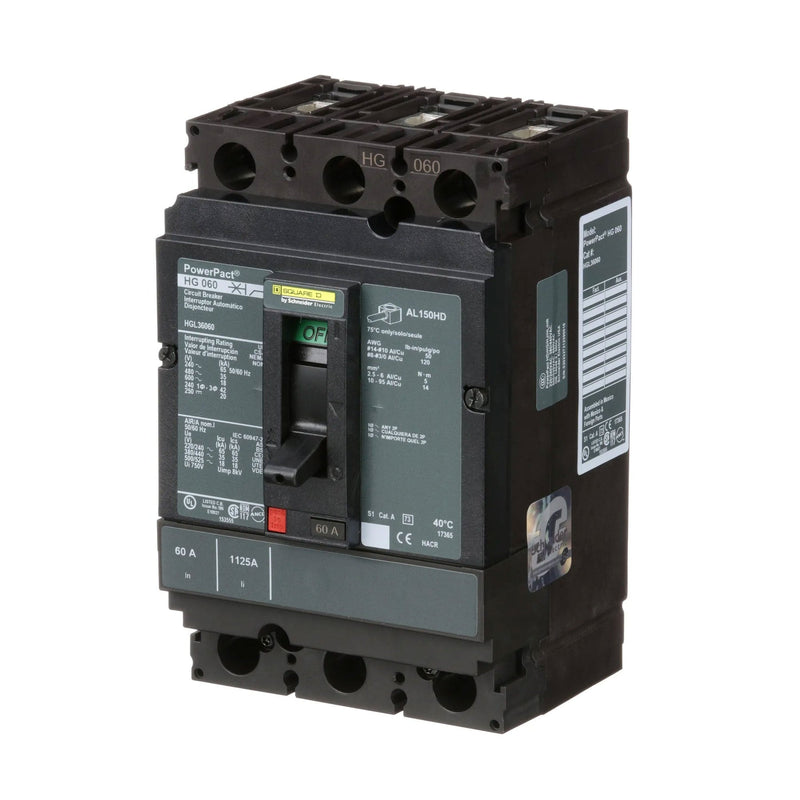

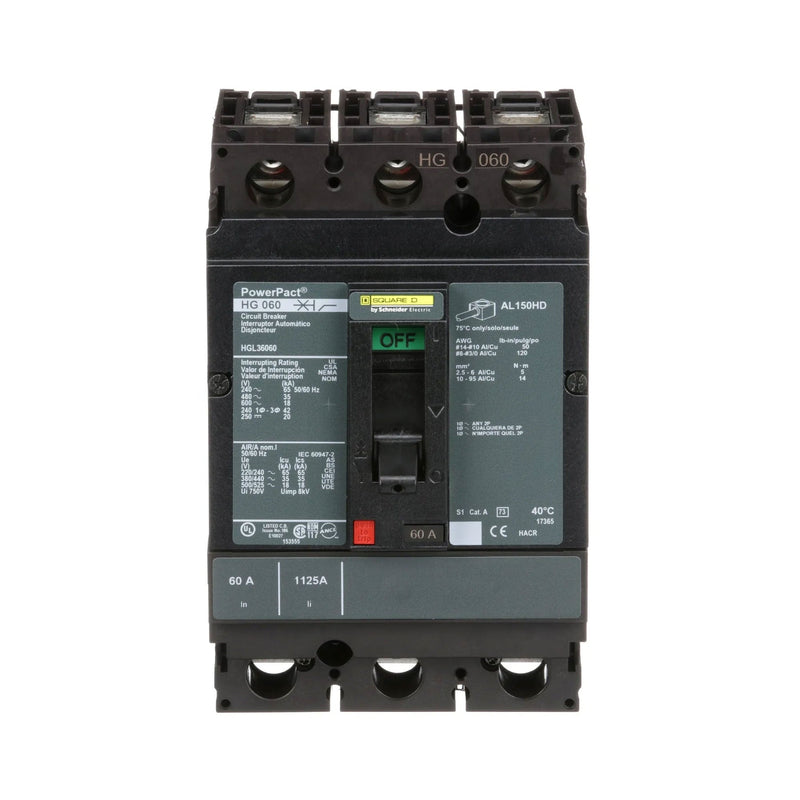

Schneider Electric HGL36060 | 60A 3-Pole PowerPacT H-Frame Circuit Breaker

Main Description:

The Schneider Electric HGL36060 is a 60A, 3-pole molded case circuit breaker from the PowerPacT H-Frame series, designed for dependable protection of industrial and commercial electrical systems. Operating at up to 600 VAC and utilizing a thermal magnetic trip unit, it provides reliable defense against overloads and short circuits. With an 18kA interrupting rating at 600 VAC and dual-break rotating contacts for reduced fault stress, the HGL36060 offers rugged performance and long-term reliability. It includes lugs on both line and load sides and features an integral push-to-trip button for manual operation. Fully compliant with UL, CSA, NOM, and IEC standards, the breaker also carries the CE mark.

Technical Overview:

• Manufacturer: Schneider Electric

• Brand: Square D

• Part Number: HGL36060

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Condition: New/Never Used Surplus

• Family / Series: PowerPacT H-Frame

• Type: HGL

• Current Rating: 60 A

• Voltage Rating: 600 VAC

• Number of Poles: 3

• Phase: 3-Phase

• Protection Type: Thermal Magnetic

• Trip Technology: LI – Long-Time and Instantaneous

• Breaking Capacity: 18 kA @ 600 VAC

• Control Type: Toggle

• Connection Type: Line and Load Lugs

• Mounting: Unit Mount

• Rated Operational Voltage (Ue): 690 VAC

• Rated Insulation Voltage (Ui): 750 VAC

• Impulse Withstand Voltage (Uimp): 8 kV

• Continuous Current Rating: 80%

• Terminal Range: AWG 14 to AWG 3/0 Cu/Al

• Dimensions: 6.42 in H × 4.09 in W × 3.39 in D

• Standards: UL, CSA, NOM, IEC, CE Marked

• IP Rating: IP40 (front cover)

Key Features:

• 60A, 3-pole PowerPacT H-Frame molded case circuit breaker

• 18kA interrupting capacity at 600 VAC

• Thermal magnetic LI protection for overloads and short circuits

• Dual-break rotating contacts reduce peak short-circuit currents

• Integral push-to-trip button for manual tripping

• Rugged, industrial-grade design

• Line and load lugs included for secure connections

• Suitable for 3-phase power distribution applications
