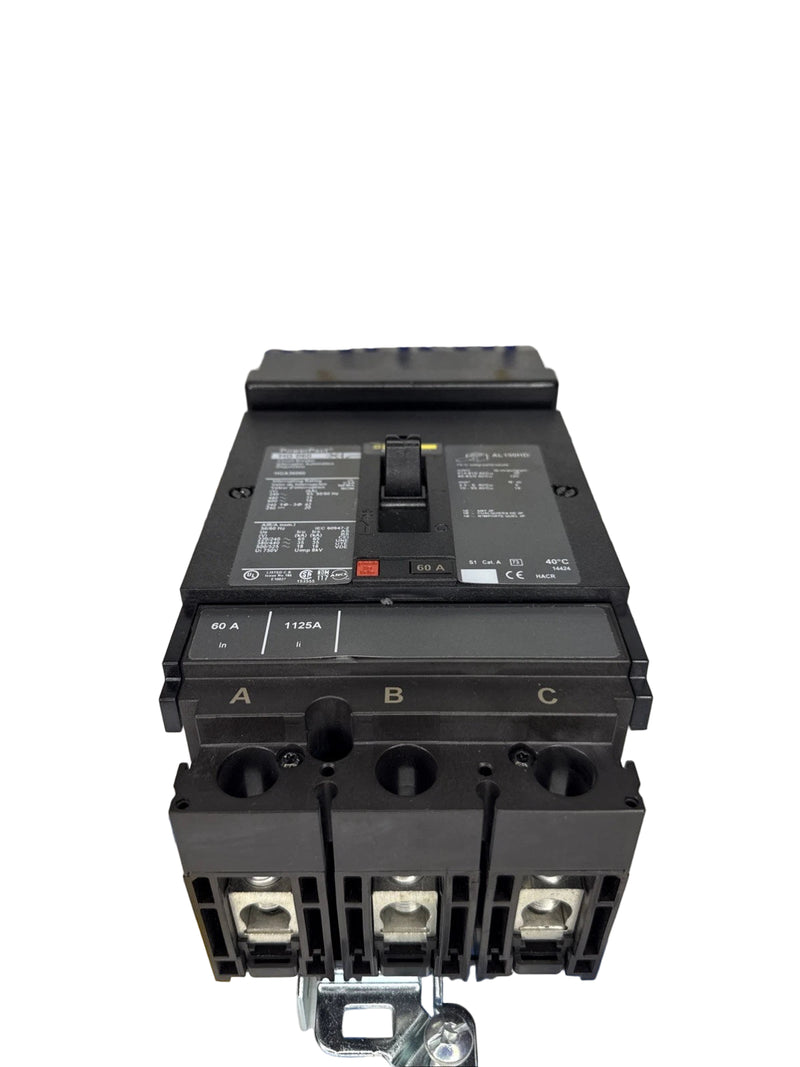

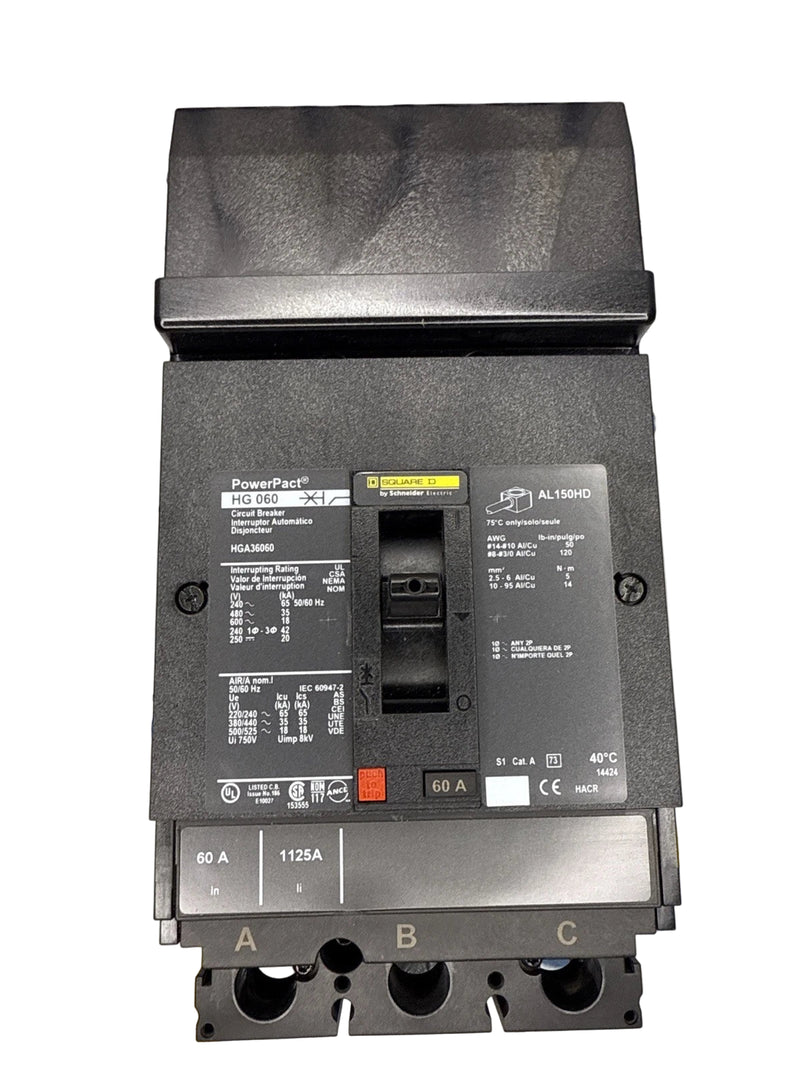

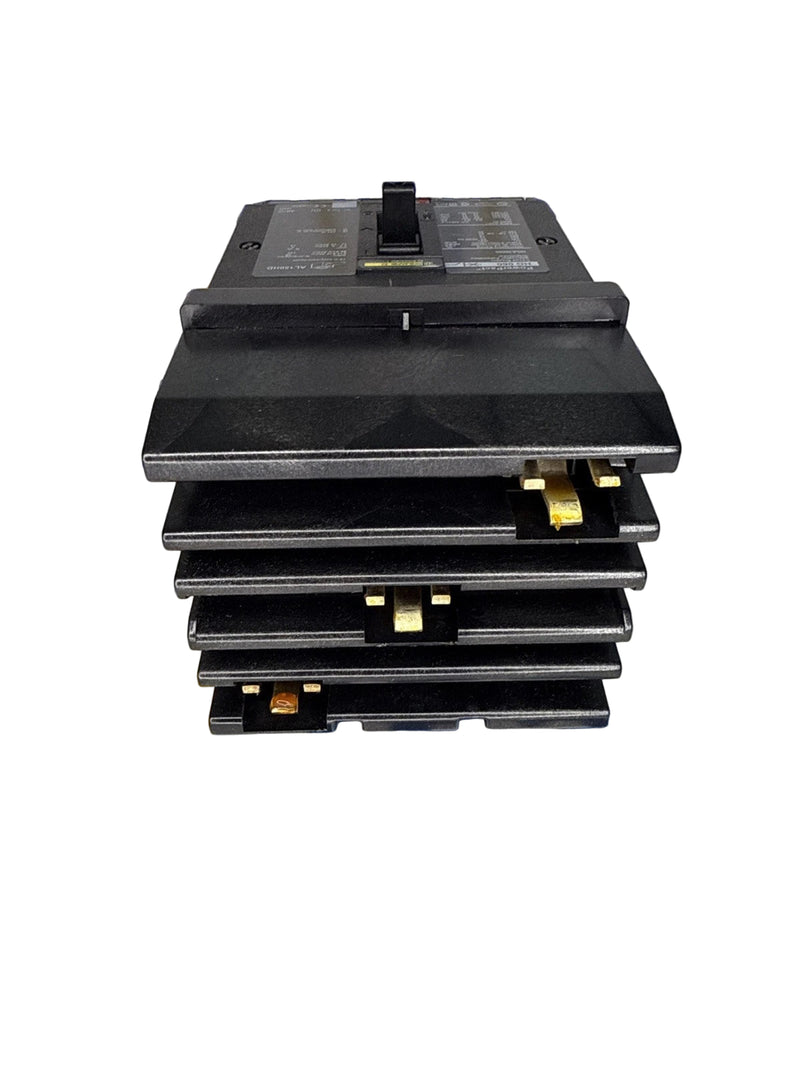

Schneider Electric HGA36060 | 60A 3-Pole PowerPacT H-Frame Circuit Breaker

Main Description:

The Schneider Electric HGA36060 is a compact and reliable PowerPacT H-Frame molded case circuit breaker designed to protect electrical systems from overloads and short circuits. Offering a 60A current rating, 3-pole configuration, and thermal-magnetic trip technology, it delivers dependable performance across commercial, industrial, and facility-level applications. With an 18kA breaking capacity at 600VAC and I-Line bracket mounting, the HGA36060 provides robust protection, simplified installation, and long-term durability while meeting UL, CSA, NOM, IEC, and CE standards.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: HGA36060

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Product Series: PowerPacT H-Frame

• Poles: 3

• Phase Connection: ABC

• Amperage Rating: 60A

• Voltage Rating: 690VAC (IEC), 600VAC (UL)

• Interrupting Rating: 18kA @ 600VAC

• Breaking Capacity Code: G

• Trip Unit Technology: Thermal-Magnetic

• Magnetic Hold: 800A

• Magnetic Trip: 1450A

• Continuous Current Rating: 80%

• Operational Frequency: 50/60 Hz

• Impulse Withstand Voltage: 8 kV (IEC 60947-2)

• Insulation Voltage: 750 V (IEC 60947-2)

• Suitability for Isolation: Yes (IEC 60947-2)

• Utilization Category: Category A

• Control Type: Toggle

• Local Signaling: OFF indicator + green trip indicator

• Mounting Mode: I-Line Bracket

• Mounting Support: Bracket

• Electrical Connection: I-Line (line), lugs (load)

• Terminal Identifier: AL150HD

• Wire Size Range: AWG 14–3/0 (Cu/Al)

• Power Wire Strip Length: 0.63 in (16 mm)

• Tightening Torque: 247.82 lbf-in (28 N·m)

• Color: Black

• Dimensions (HxWxD): 6.42 in × 4.09 in × 3.39 in

• Net Weight: 4.85 lb (2.2 kg)

• IP Rating: IP40 (front cover)

• Pollution Degree: 3

• Operating Temperature: -13°F to 158°F (-25°C to 70°C)

• Storage Temperature: -58°F to 185°F (-50°C to 85°C)

• Certifications: UL, CSA, NOM, IEC, CE

• Application Rating: HACR Rated

• Condition: New/Never Used Surplus

Key Features:

• 60A thermal-magnetic protection with 18kA interrupting capability

• I-Line bracket mounting for fast, secure installation in distribution systems

• Dual-break rotating contacts reduce peak short-circuit let-through current

• Integral push-to-trip button for manual testing and service operations

• Load-side mechanical lugs and I-Line line-side connection for easy integration

• Wide temperature tolerance for demanding industrial environments

• Fully compliant with UL, CSA, NOM, IEC, and CE requirements
