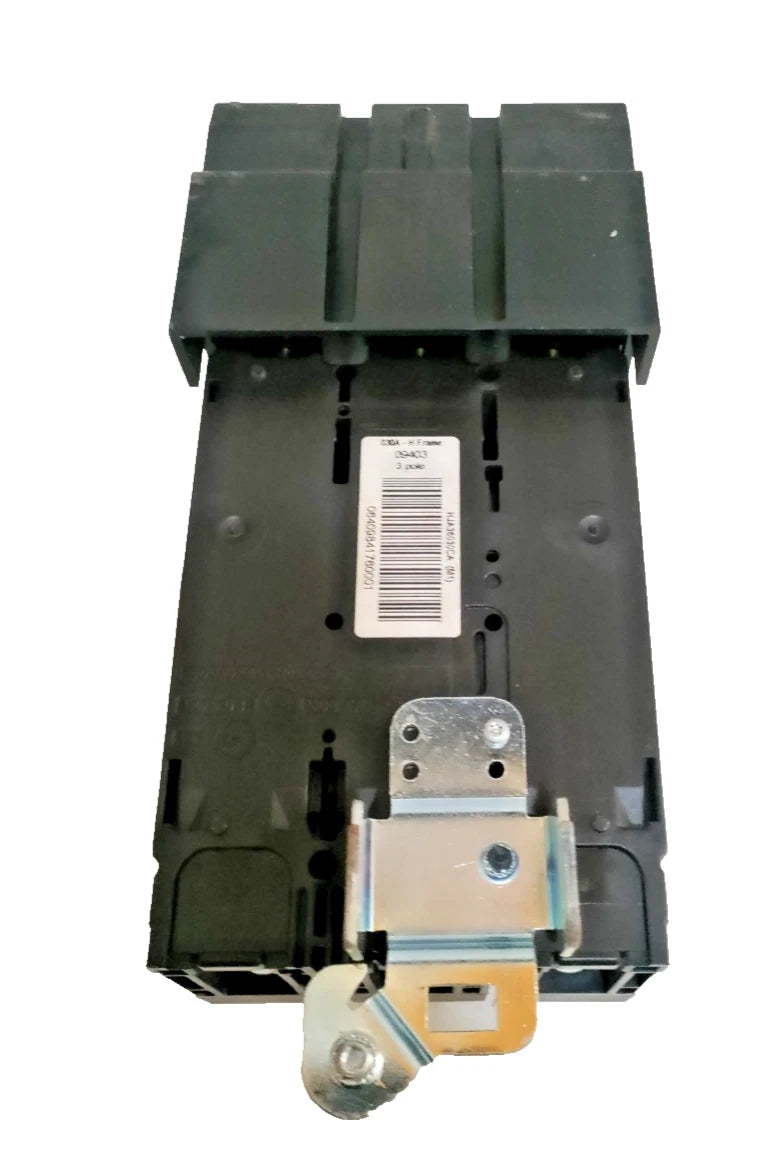

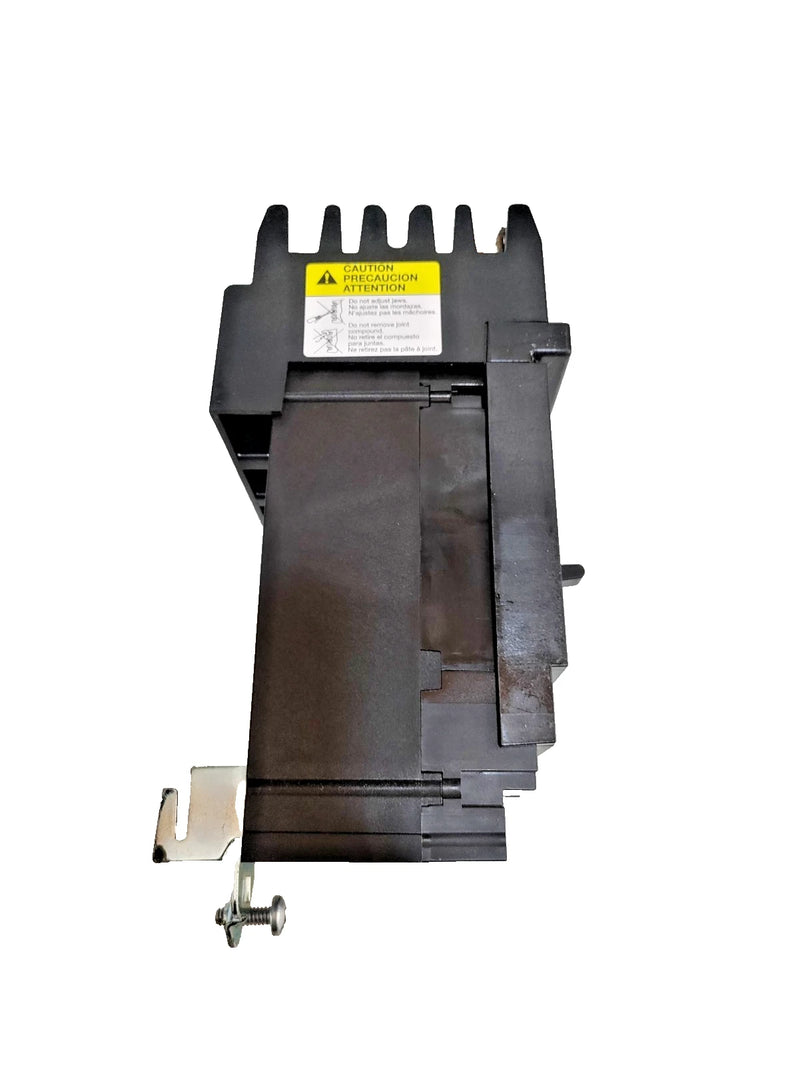

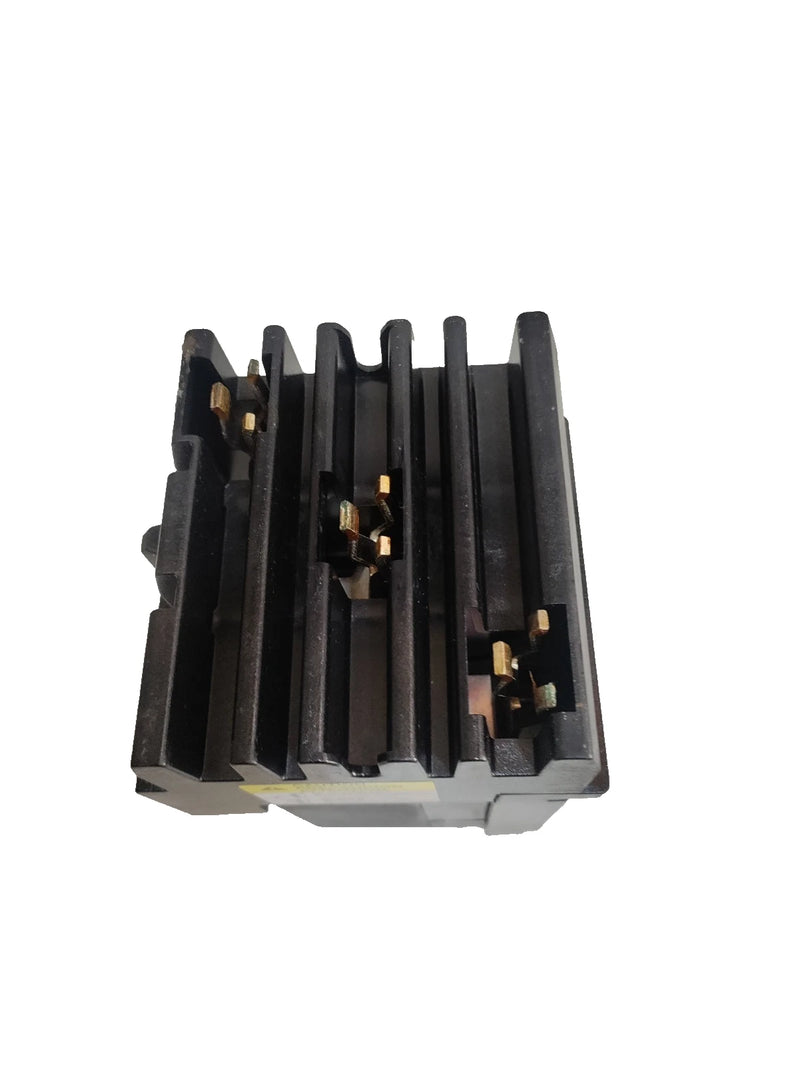

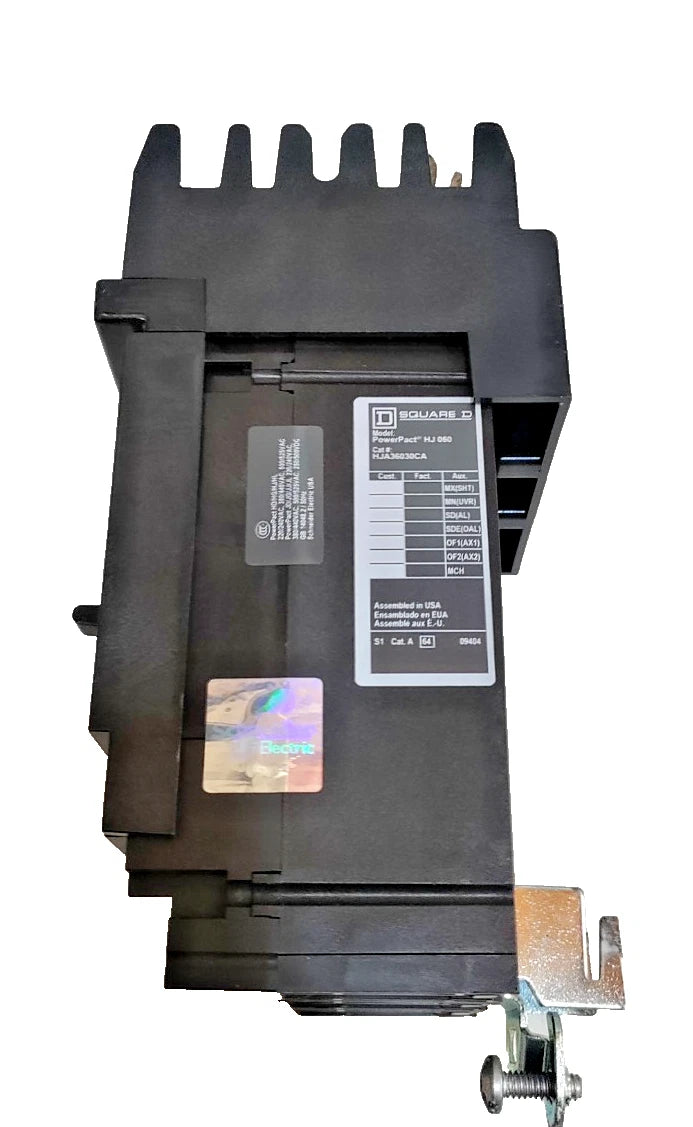

Schneider Electric HGA36030 | 30A 3-Pole PowerPacT H-Frame Circuit Breaker

Main Description:

The Schneider Electric HGA36030 is a dependable PowerPacT H-Frame molded case circuit breaker designed to protect electrical systems from overloads and short-circuit conditions. With a 30A current rating, 3-pole design, and 600VAC operating capability, this breaker is well-suited for commercial and industrial distribution applications. It utilizes a thermal-magnetic trip unit to provide accurate fault response, while its 18kA interrupting capacity ensures robust short-circuit performance. The HGA36030 includes I-Line terminations on the line side and mechanical lugs on the load side, offering simplified installation and serviceability within I-Line panelboards.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: HGA36030

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Product Series: PowerPacT H-Frame

• Poles: 3

• Phase Connection: ABC

• Amperage Rating: 30A

• Voltage Rating: 600VAC (UL 489), 690VAC (IEC 60947-3)

• Interrupting Rating: 18kA @ 600VAC

• Breaking Capacity Code: G

• Trip Unit Technology: Thermal-Magnetic

• Magnetic Hold Current: 350A

• Magnetic Trip Current: 750A

• Continuous Current Rating: 80%

• Suitability for Isolation: Yes (IEC 60947-2)

• Insulation Voltage: 750V

• Impulse Withstand Voltage: 8kV

• Utilization Category: Category A

• Control Type: Toggle

• Local Signaling: ON/OFF indicator + green trip indicator

• Mounting Mode: I-Line Bracket

• Mounting Support: Bracket

• Electrical Connection: I-Line (line), Lugs (load)

• Terminal Identifier: AL150HD

• Wire Size Compatibility: AWG 14…3/0 (Cu/Al)

• Power Wire Strip Length: 0.63 in (16 mm)

• Dimensions (HxWxD): 6.42 in × 4.09 in × 3.39 in

• Net Weight: 4.85 lb (2.2 kg)

• Communication Interface: Modbus, Ethernet

• Application Rating: HACR Rated

• Condition: New/Never Used Surplus

Key Features:

• Thermal-magnetic trip unit delivers precise overload and fault protection

• 18kA interrupting rating for reliable short-circuit performance

• I-Line mounting with line-side stabs and load-side lugs for fast installation

• Dual-break rotating contacts reduce peak short-circuit let-through energy

• Integral push-to-trip button for manual testing and maintenance

• Compatible with a wide range of I-Line panelboards and distribution equipment

• Meets UL, CSA, NOM, IEC, and CE compliance requirements
