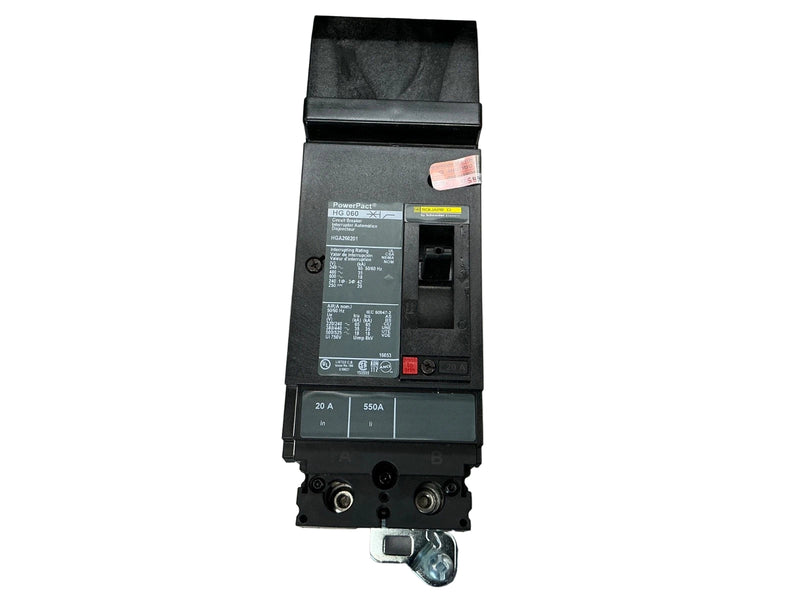

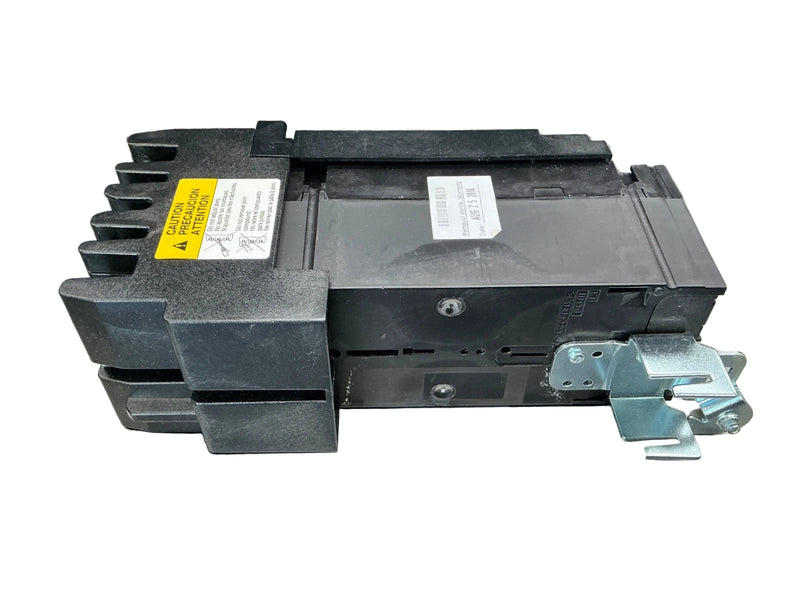

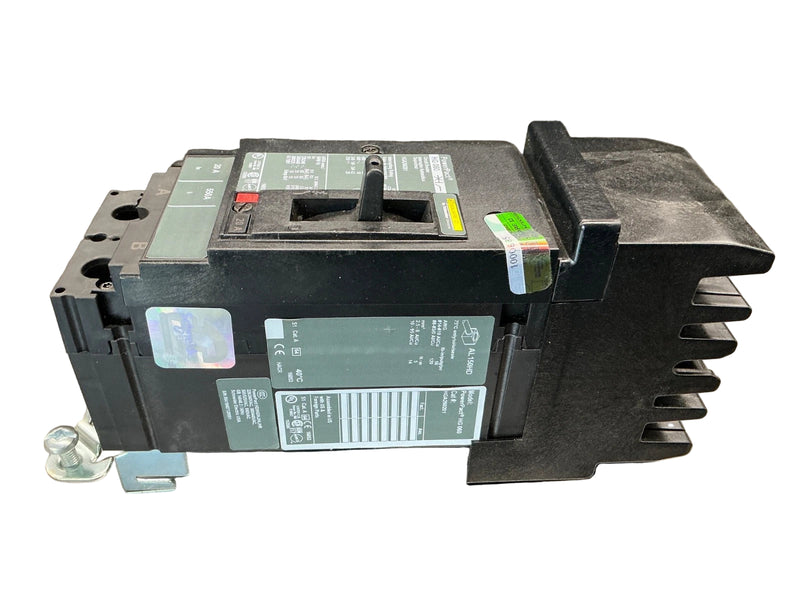

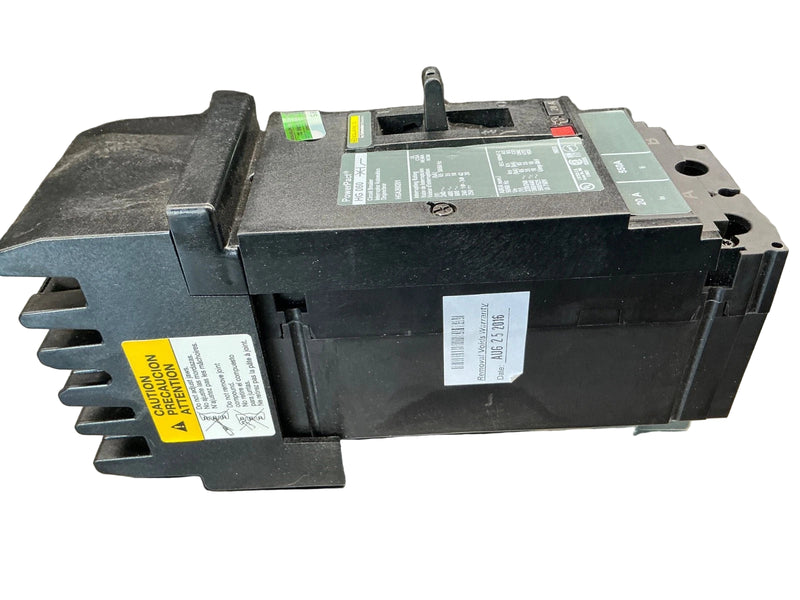

Schneider Electric HGA260201 | PowerPact H-Frame 20A 2-Pole Molded Case Circuit Breaker

Main Description:

The Schneider Electric HGA260201 is a compact and durable PowerPact H-Frame molded case circuit breaker engineered for reliable protection in distribution applications. Rated at 20A and up to 690 VAC, this breaker utilizes thermal magnetic protection to safeguard electrical systems against overloads and short circuits. With an interrupting capacity of 18 kA and dual-break rotating contacts, it sharply reduces peak fault currents and enhances system safety. Designed for I-Line mounting, the HGA260201 allows fast and secure installation, making it ideal for commercial, industrial, and panelboard applications.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: HGA260201

• Product Type: Molded Case Circuit Breaker

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Family: PowerPact H

• Range: PowerPact

• Type: HGA

• Frame Type: H Frame

• Voltage Rating: 690 VAC

• Amperage Rating: 20 A

• Phase: 1/2-Phase (AB)

• Poles: 2

• Interrupting Rating: 18 kA @ 600 VAC

• Protection: Thermal Magnetic

• Trip Unit: Thermal-Magnetic LI (Long-Time, Instantaneous)

• Magnetic Tripping Current: 750 A

• Magnetic Hold Current: 350 A

• Continuous Current Rating: 80%

• Rated Insulation Voltage: 750 V

• Rated Impulse Withstand Voltage: 8 kV

• Utilisation Category: Category A

• AWG Range: 14 AWG to 3/0 AWG (Cu/Al)

• Mounting Mode: I-Line Bracket

• Mounting Support: Bracket

• Electrical Connection: I-Line (line side), lugs on load side (AL150HD)

• Local Signaling: Trip indicator (green)

• Dimensions:

  • Height: 6.42 in (163 mm)

  • Width: 4.09 in (104 mm)

  • Depth: 3.39 in (86 mm)

• Net Weight: 4.85 lb (2.2 kg)

• Quantity per Set: 1

• Color: Black

• Application: Distribution / HACR Compatible

• Condition: New/Never Used Surplus

Key Features:

• 20A, 2-pole PowerPact H-Frame molded case breaker

• Thermal magnetic LI protection for overloads and short circuits

• High interrupting rating of 18 kA @ 600 VAC

• Dual-break rotating contacts reduce peak short-circuit current

• I-Line mounting for fast, secure installation

• Integral push-to-trip button for manual testing

• Rugged construction suitable for demanding industrial environments
