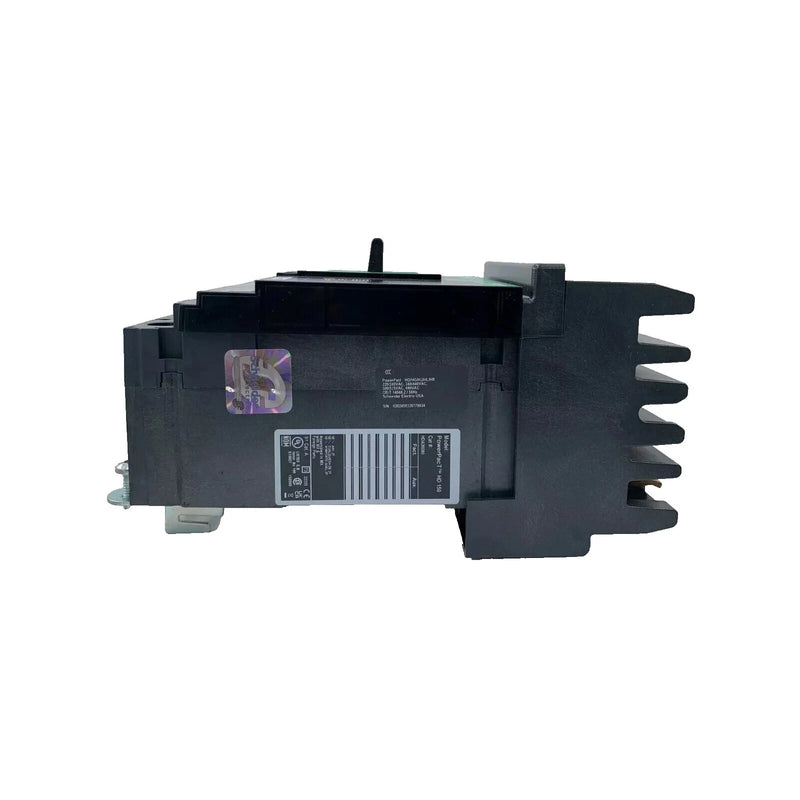

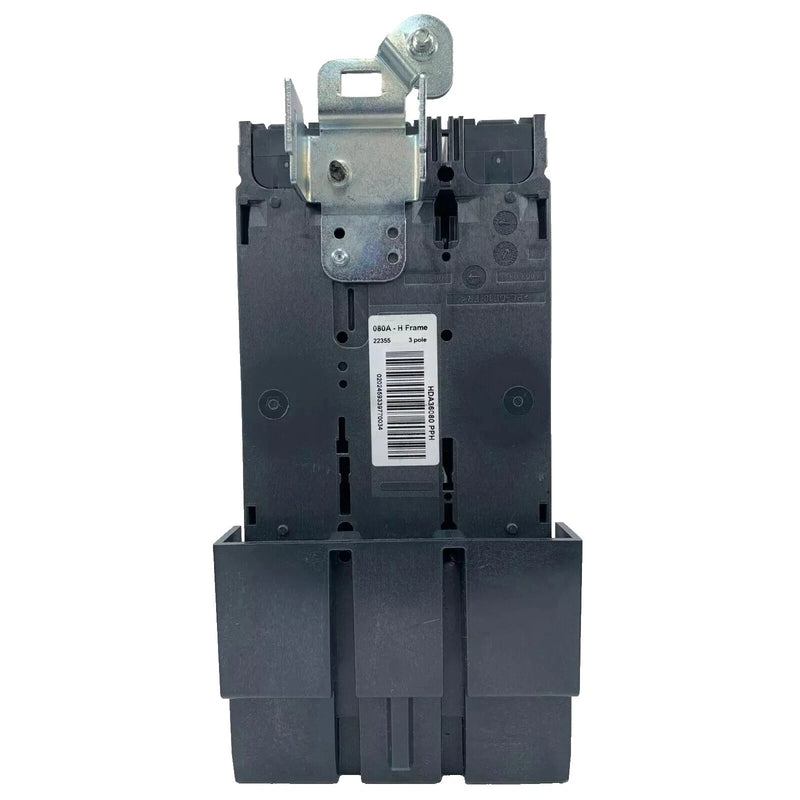

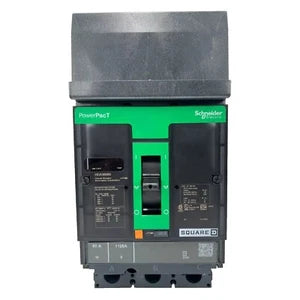

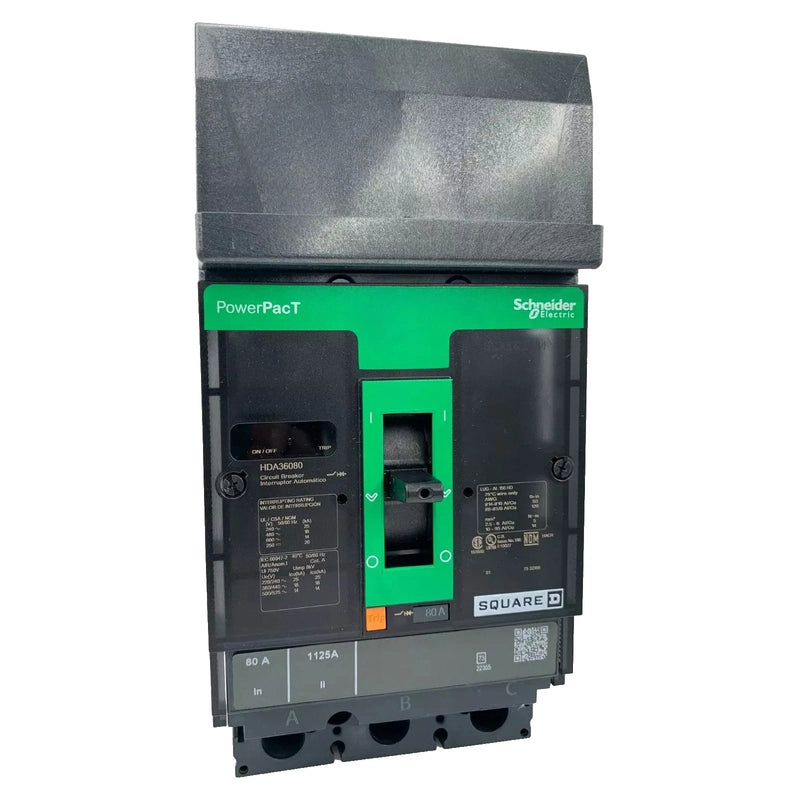

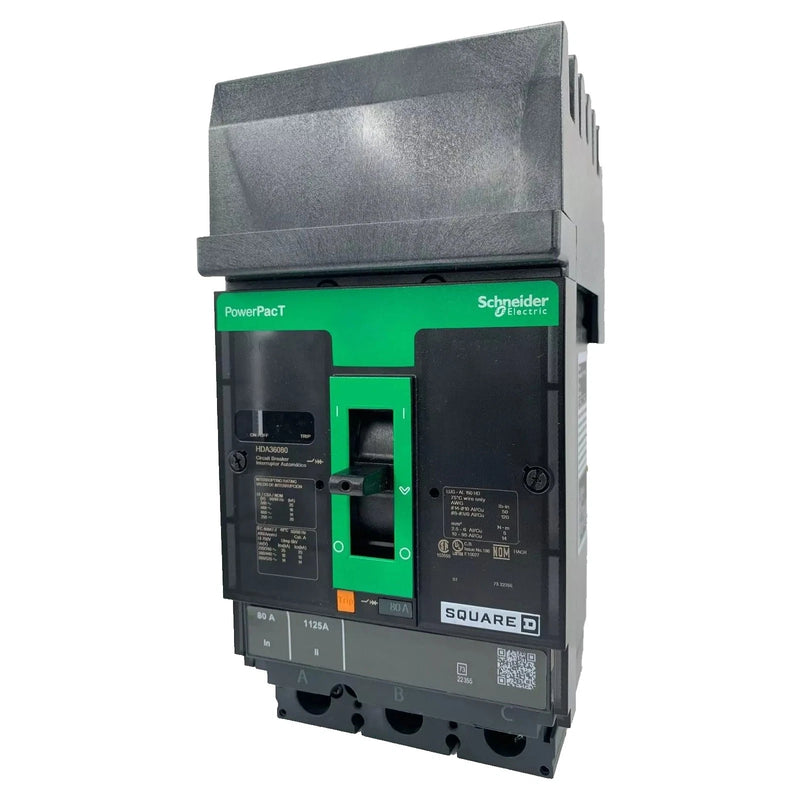

Schneider Electric HDA36080 | PowerPact H-Frame 80A Molded Case Circuit Breaker

Main Description:

The Schneider Electric HDA36080 is a robust PowerPact H-Frame molded case circuit breaker engineered for reliable protection in demanding commercial and industrial systems. Rated at 80A and 600V, this 3-pole breaker features an 18 kA interrupt rating at 480V and utilizes thermal magnetic LI (Long-Time and Instantaneous) trip functions to safeguard against overloads and short-circuit conditions. Designed with an I-Line plug-in connection, the HDA36080 offers fast, secure mounting and dependable performance in power distribution applications.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: HDA36080

• Product Type: Molded Case Circuit Breaker (PowerPact H Series)

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Family: PowerPact

• Type: HDA

• Frame Type: H Frame

• Voltage Rating: 600 VAC

• Amperage Rating: 80 A

• Phase: 3

• Poles: 3

• Interrupting Rating: 18 kA @ 480V

• Trip Functions: LI – Long-Time and Instantaneous

• Protection: Thermal Magnetic

• Connection Type: I-Line Style Plug-In

• Approvals/Certifications: UL Listed (implied for PowerPact H Series)

• Condition: New/Never Used Surplus

Key Features:

• PowerPact H-Frame durability for industrial and commercial systems

• 80A thermal magnetic protection for overload and short-circuit defense

• LI trip functions for enhanced long-time and instantaneous protection

• I-Line plug-in design for fast, reliable mounting

• 18 kA interrupt rating at 480V for strong fault-handling capability

• Designed for demanding installations requiring code-compliant protection
