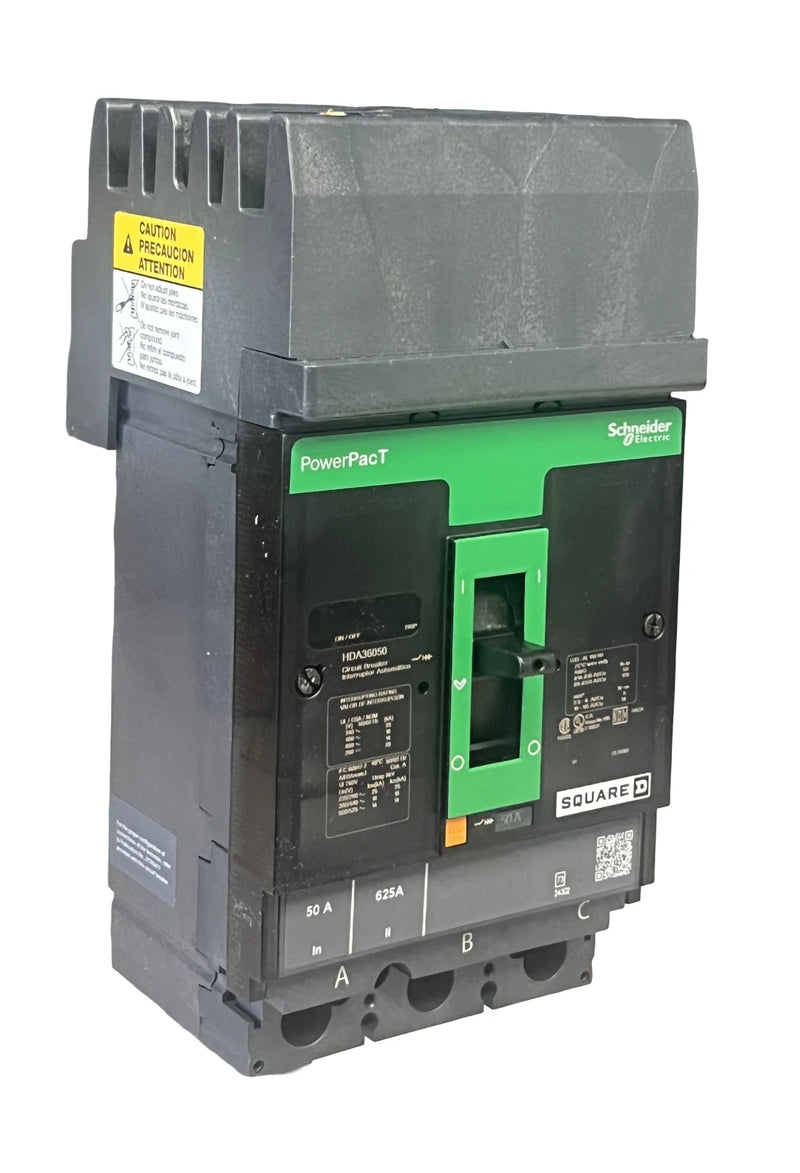

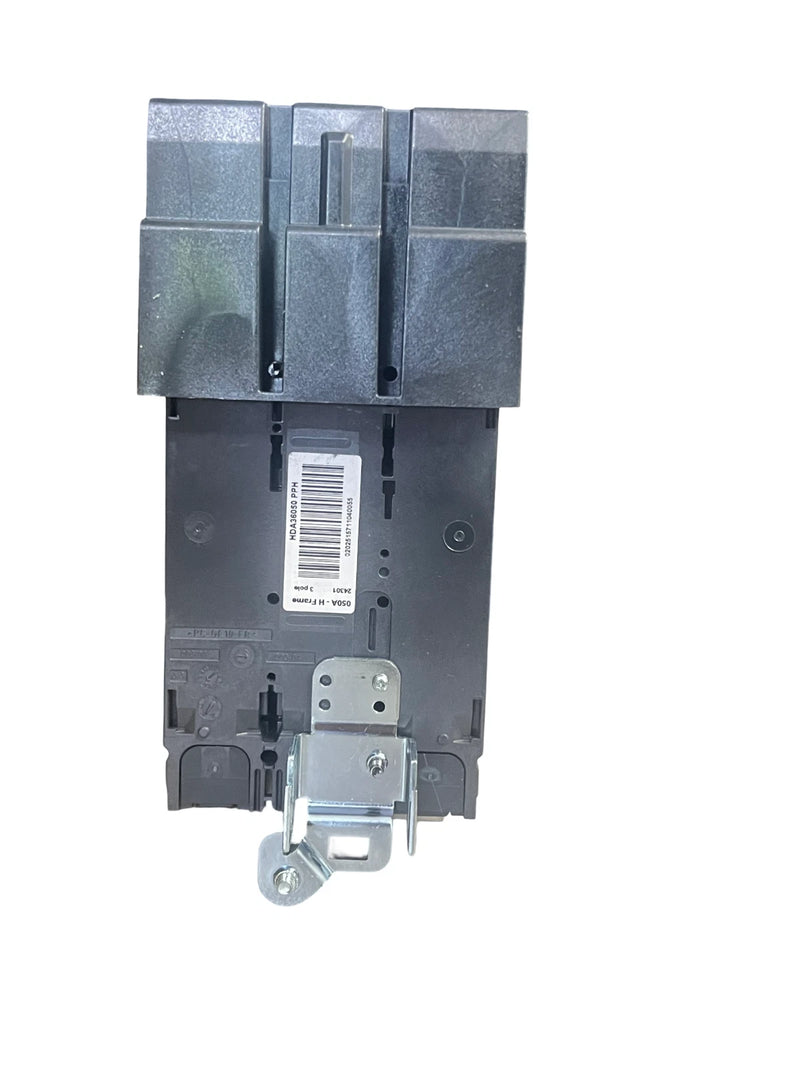

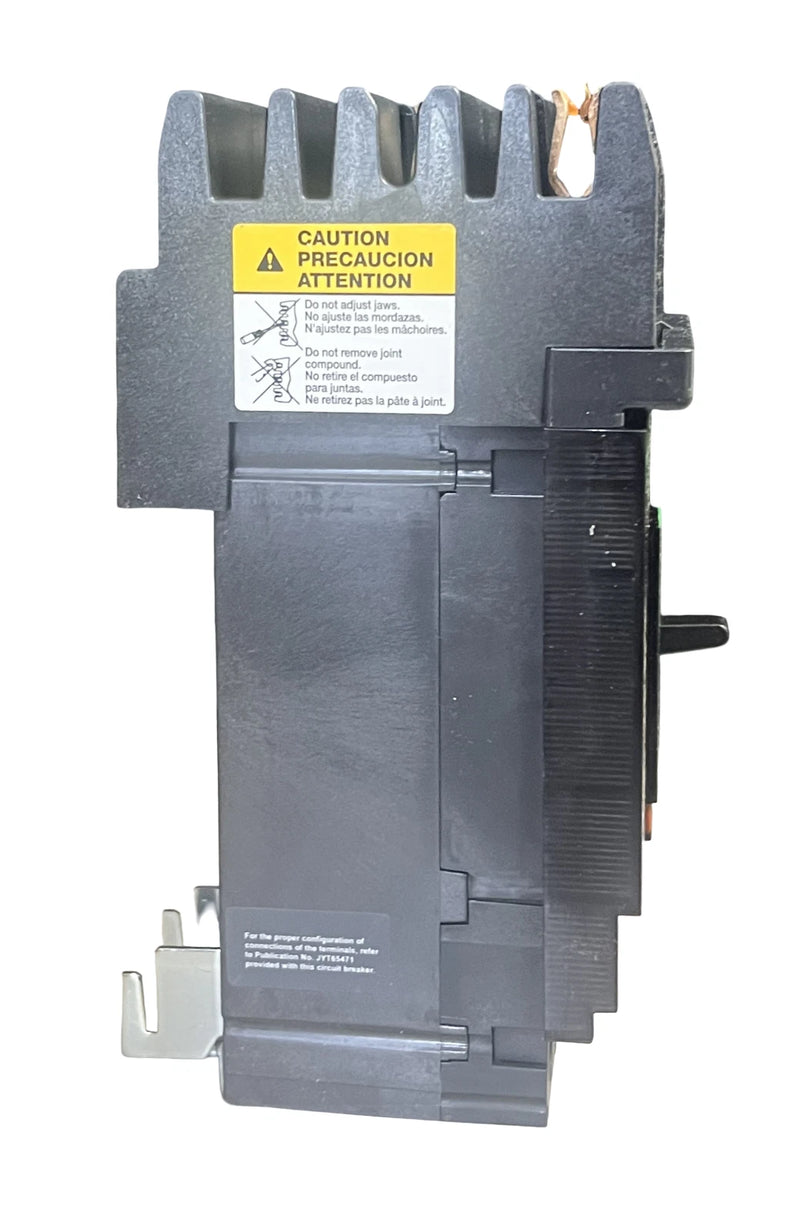

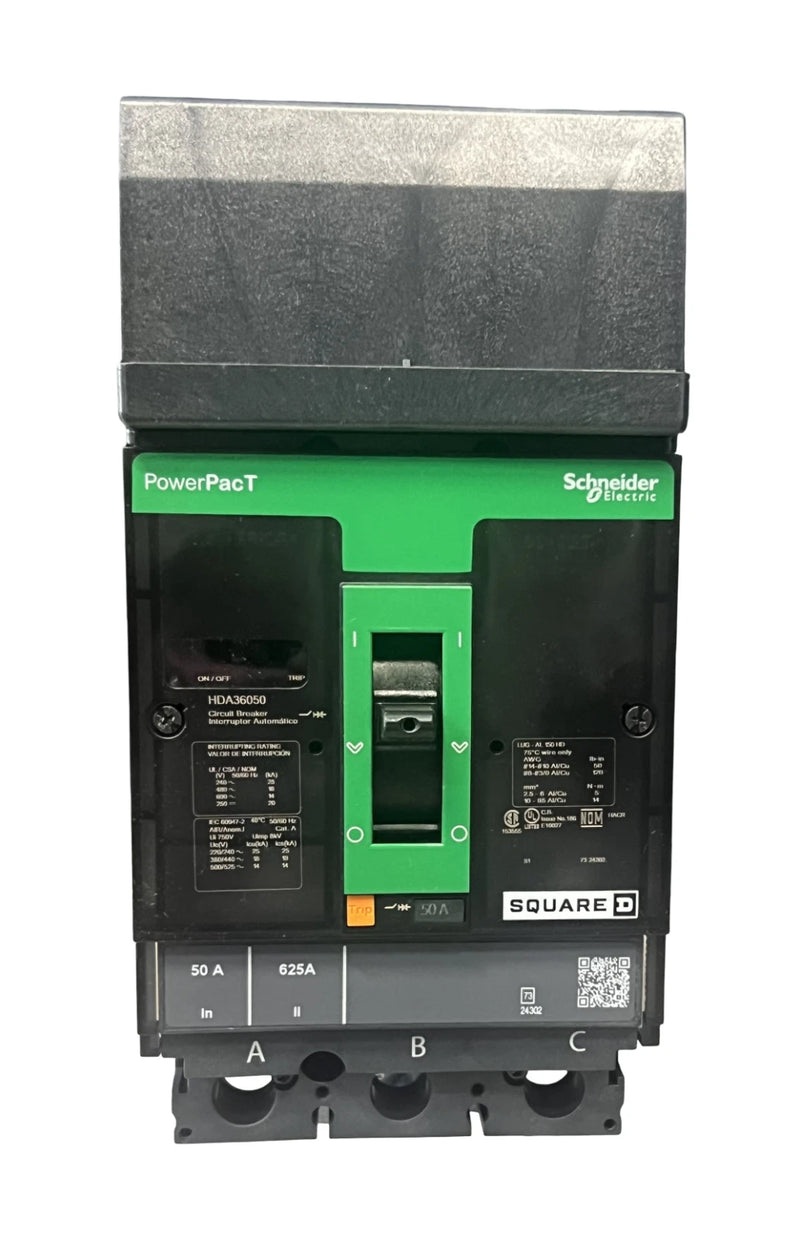

Schneider Electric HDA36050 | 50 Amp 3-Pole PowerPacT H-Frame Circuit Breaker

Main Description:

The Schneider Electric HDA36050 is a reliable PowerPacT H-Frame molded case circuit breaker engineered for industrial and commercial environments requiring dependable electrical protection. Rated for 50A at 600VAC, it features thermal-magnetic overcurrent protection and LI (Long-Time and Instantaneous) trip functions for comprehensive safeguarding against overloads and short-circuit events. With an 18kA interrupting rating at 480V and an I-Line plug-in mounting design, the HDA36050 ensures fast, secure installation and long-lasting performance.

Technical Overview:

• Manufacturer: Schneider Electric / Square D

• Part Number: HDA36050

• Family / Series: PowerPacT H

• Category: Molded Case Circuit Breaker

• Type: HDA

• Poles: 3

• Phase: 3-Phase (ABC)

• Amperage Rating: 50 Amps

• Voltage Rating: 600 VAC

• AIC Rating: 18 kA @ 480V

• Protection Type: Thermal-Magnetic

• Trip Functions: LI – Long-Time & Instantaneous

• Connection Type: I-Line Style Plug-In

• Frame Type: H-Frame

• Approvals/Certifications: UL Listed

• Condition: New/Never Used Surplus

Key Features:

• Reliable 50A protection for 600V three-phase systems

• Thermal-magnetic LI trip functions ensure full-spectrum overcurrent protection

• Standard 18kA interrupting rating at 480V

• I-Line plug-in design enables fast and secure installation

• Rugged H-Frame molded case construction for industrial environments

• Suitable for reverse-fed applications
