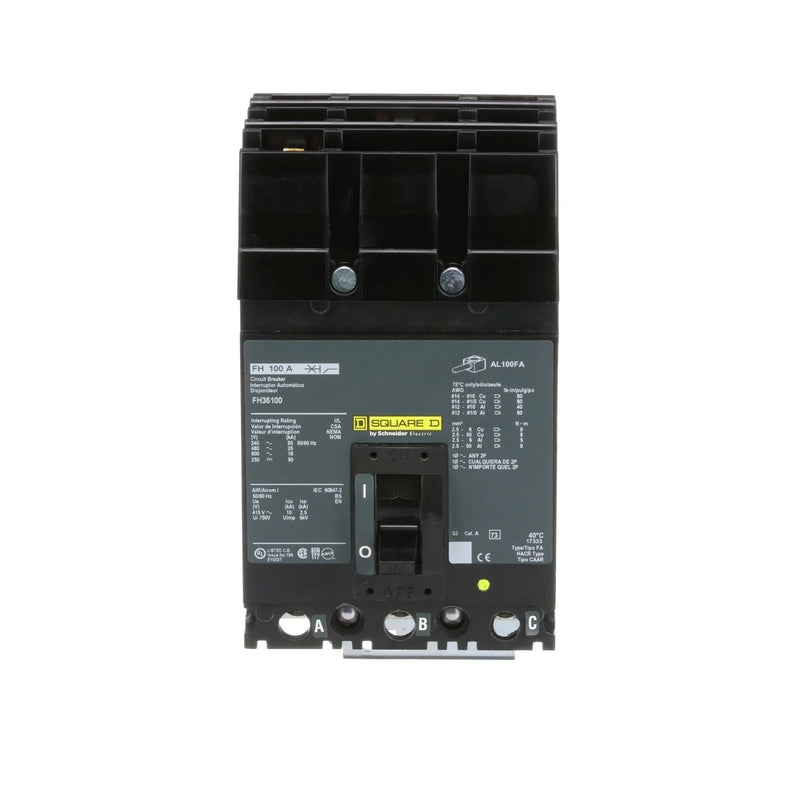

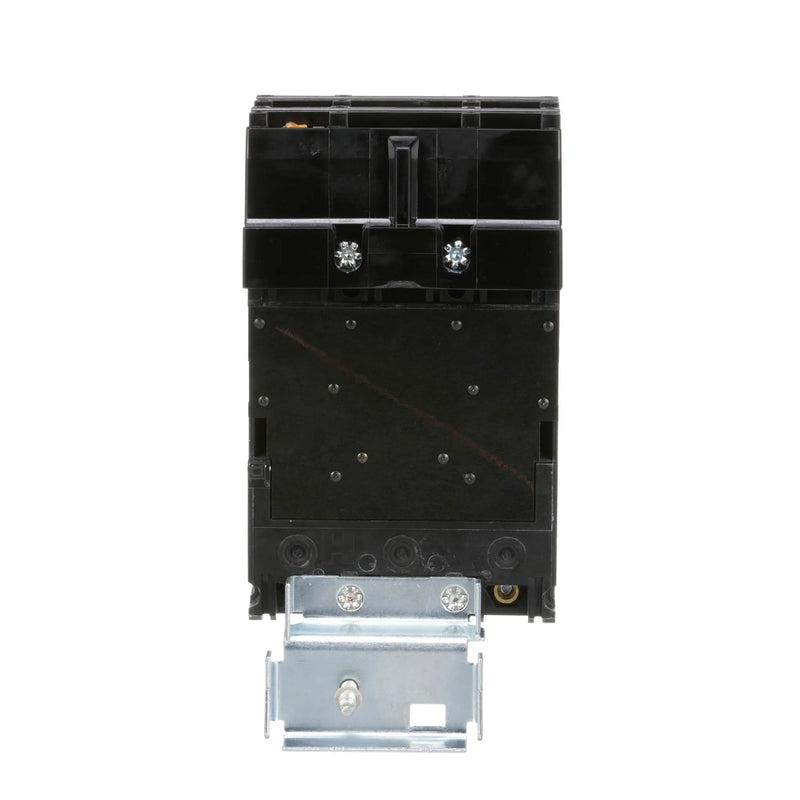

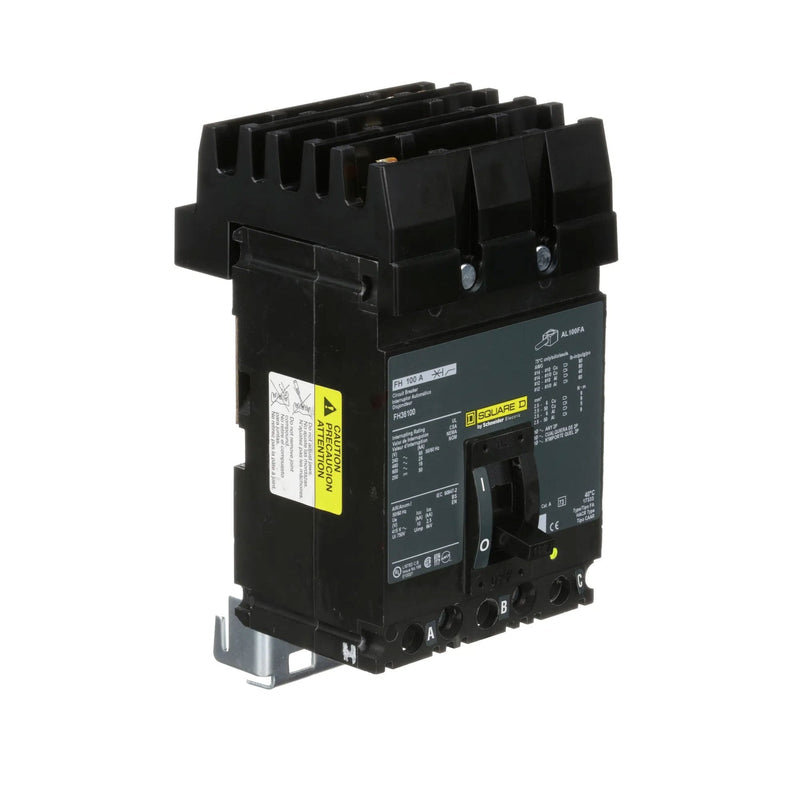

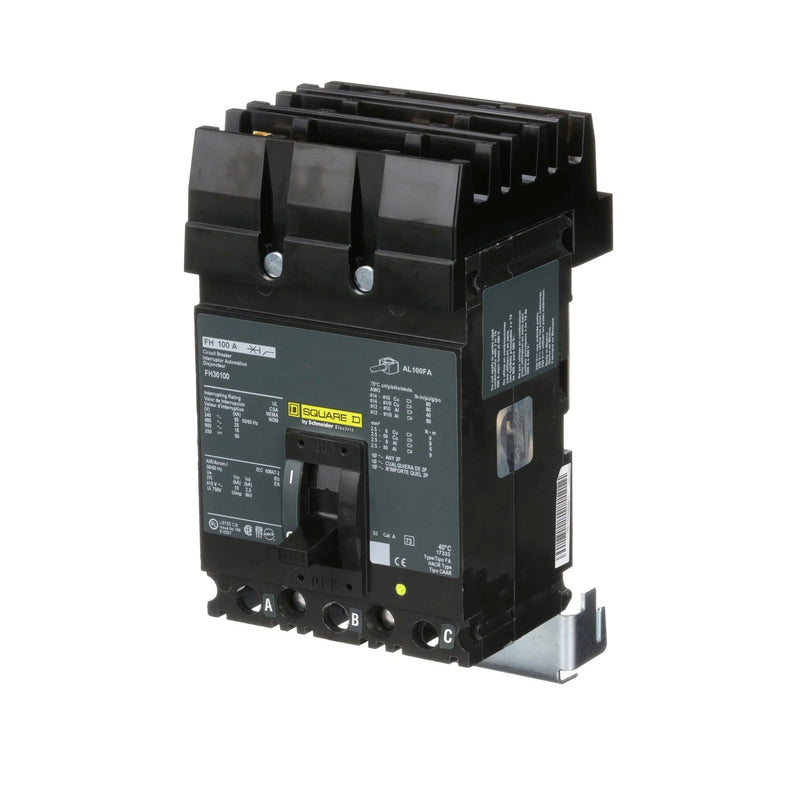

Schneider Electric FH36100 | 100A 3-Pole I-Line Molded Case Circuit Breaker

Main Description:

The Schneider Electric FH36100 is a 100A, 3-pole molded case circuit breaker from the I-Line FH Series, built for industrial and commercial power distribution systems. Operating at up to 600 VAC and utilizing an I-Line style plug-in mounting system, it ensures fast, secure installation. With thermal magnetic trip technology and a high interrupting capacity of 25kA at 480 VAC, the FH36100 provides reliable overload and short-circuit protection across demanding three-phase applications.

Technical Overview:

• Manufacturer: Schneider Electric

• Brand: Square D

• Part Number: FH36100

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Condition: New/Never Used Surplus

• Family / Series: I-Line

• Type: FH

• Frame Type: F-Frame

• Current Rating: 100 A

• Voltage Rating: 600 VAC

• Phase: 3-Phase

• Poles: 3

• Protection Type: Thermal Magnetic

• Trip Functions: LI – Long-Time & Instantaneous

• Interrupting Capacity: 25 kA @ 480 VAC

• Mounting Style: I-Line Style Plug-In

• Application: Industrial and commercial distribution equipment

Key Features:

• 100A molded case circuit breaker for heavy-duty applications

• Thermal magnetic trip unit with long-time and instantaneous protection

• High interrupting rating of 25kA at 480V

• I-Line plug-in design for fast installation and strong mechanical retention

• Durable F-Frame molded construction

• Ideal for three-phase power distribution systems
