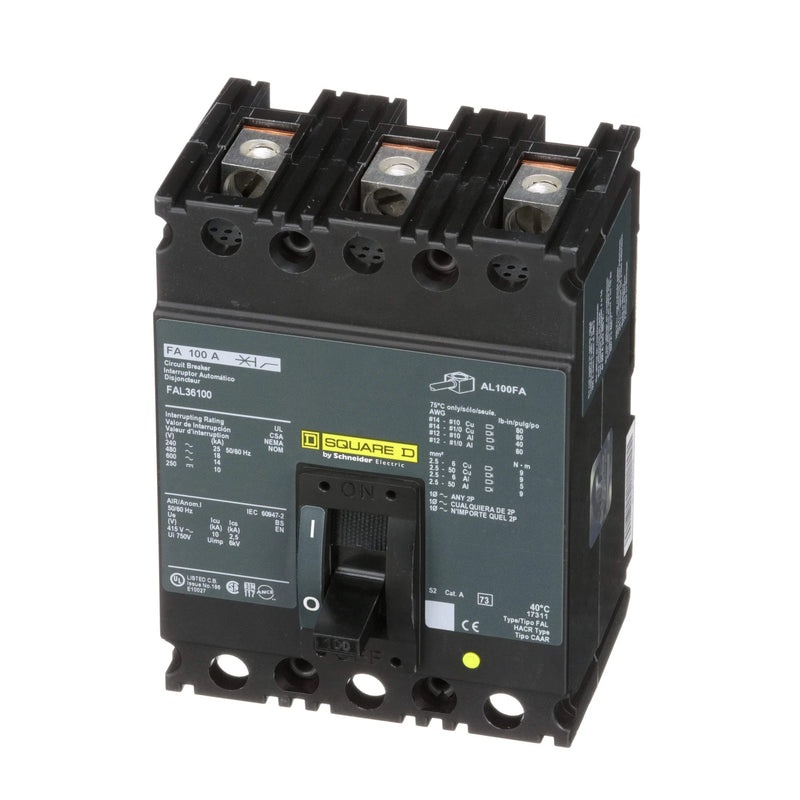

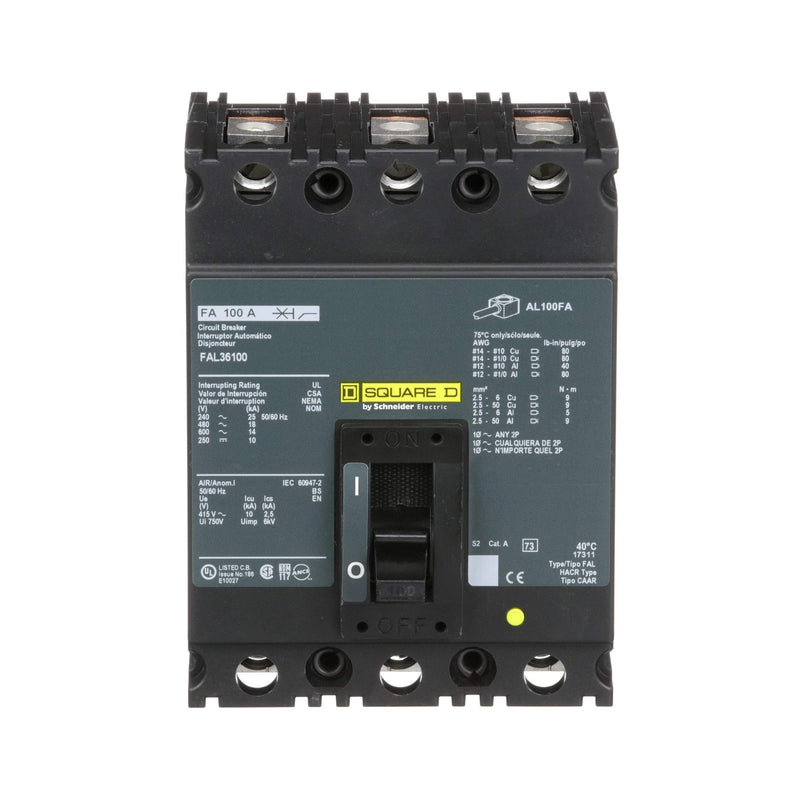

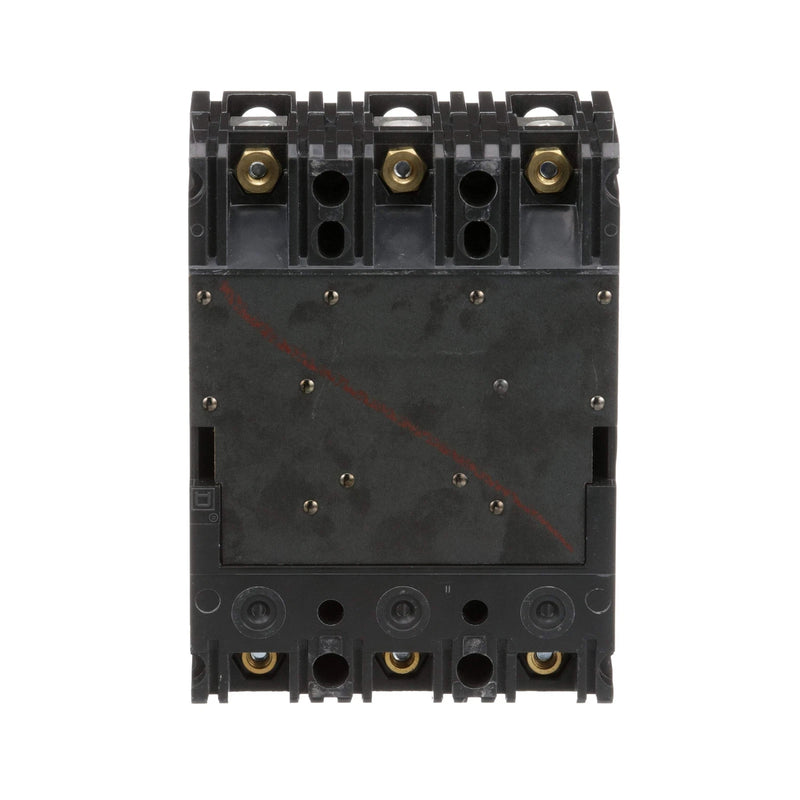

Schneider Electric FAL36100 | 100A 3-Pole FAL Series Molded Case Circuit Breaker

Main Description:

The Schneider Electric FAL36100 is a reliable Square D FAL Series molded case circuit breaker designed for three-phase electrical distribution systems. With a 100A current rating, 600VAC operating voltage, and a standard 14kA interrupting capacity, this breaker provides dependable protection for commercial and industrial applications. Featuring thermal-magnetic trip technology and LI (Long-Time & Instantaneous) trip functions, the FAL36100 offers efficient overload and short-circuit protection. Its feed-thru design with line and load lugs ensures secure wiring and easy integration into existing systems.

Technical Overview:

• Manufacturer: Schneider Electric / Square D

• Part Number: FAL36100

• Family / Series: FAL Series (FA Family)

• Category: Molded Case Circuit Breaker

• Subcategory: 3-Pole MCCB

• Type: FAL

• Poles: 3

• Amperage Rating: 100A

• Voltage Rating: 600VAC

• Phase: 3-Phase

• Interrupting Rating:

  • 14kA @ 600VAC

  • 18kA @ 480VAC (additional listing data provided)

• Trip Functions: LI – Long-Time & Instantaneous

• Protection Type: Thermal-Magnetic

• Connection Type: Feed-Thru (Line & Load Lugs)

• Mounting Style: Unit Mount

• Application: Industrial / Commercial Distribution

• Condition: New/Never Used Surplus

Key Features:

• 100A thermal-magnetic molded case breaker for heavy-duty distribution

• LI trip functions provide dependable long-time and instantaneous protection

• Standard interrupting rating for general industrial applications

• Feed-thru lug construction supports flexible wiring arrangements

• Durable molded-case design suitable for demanding environments

• Compatible with a wide range of distribution panels and equipment
