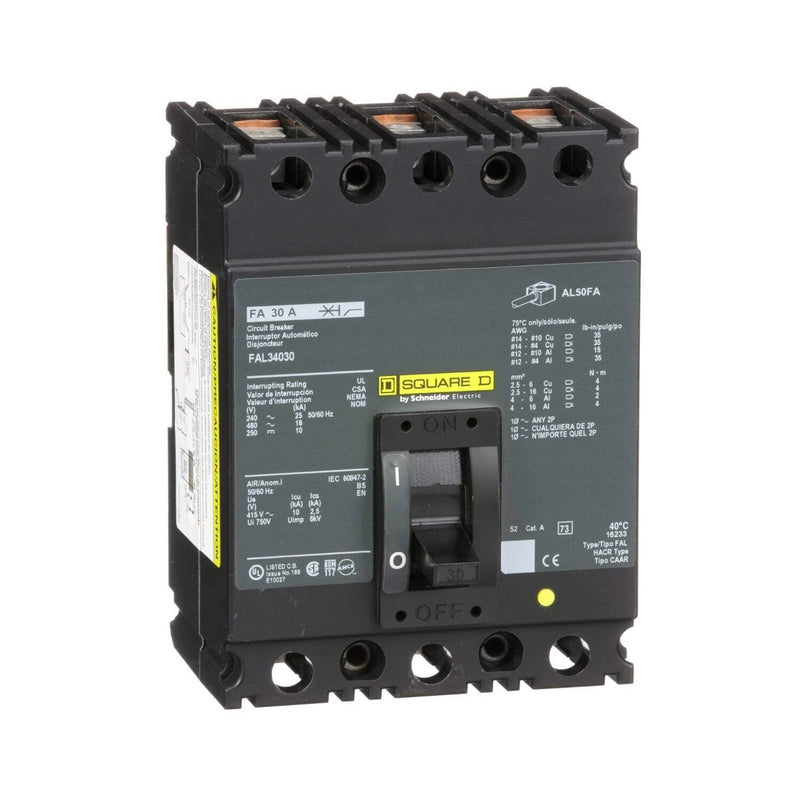

Schneider Electric FAL34030 | 30 Amp 3-Pole FAL Series Circuit Breaker

Main Description:

The Schneider Electric FAL34030 is a dependable 3-pole molded case circuit breaker from the Square D FAL Series, designed to deliver reliable circuit protection in commercial and industrial power distribution systems. Rated for 30A at 480VAC, it features thermal-magnetic overcurrent protection and LI (Long-Time and Instantaneous) trip functions to guard against overloads and short-circuit events. With an 18kA interrupting rating and a feed-thru design complete with both line and load lugs, the FAL34030 ensures safe, durable, and code-compliant performance.

Technical Overview:

• Manufacturer: Schneider Electric / Square D

• Part Number: FAL34030

• Family / Series: FAL Series

• Category: Molded Case Circuit Breaker

• Type: FAL

• Poles: 3

• Amperage Rating: 30 Amps

• Voltage Rating: 480 VAC

• Phase: 3-Phase

• Interrupting Rating: 18 kA @ 480V

• Trip Functions: LI – Long-Time & Instantaneous

• Protection Type: Thermal-Magnetic

• Frame Type: F-Frame

• Connection Type: Feed-Thru (Line & Load Lugs)

• Mounting Style: Unit Mount

• Application: Industrial / Commercial Power Distribution

• Approvals/Certifications: UL Listed

• Condition: New/Never Used Surplus

Key Features:

• Reliable 30A protection for three-phase 480V systems

• Thermal-magnetic protection delivers both long-time and instantaneous response

• Standard 18kA interrupting rating for dependable fault clearing

• Feed-thru design for straightforward panel installation

• Durable molded-case construction suitable for industrial environments

• Equipped with secure line and load lug terminals
