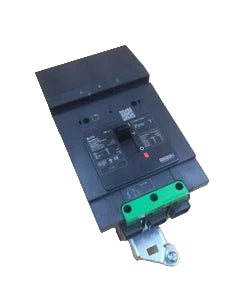

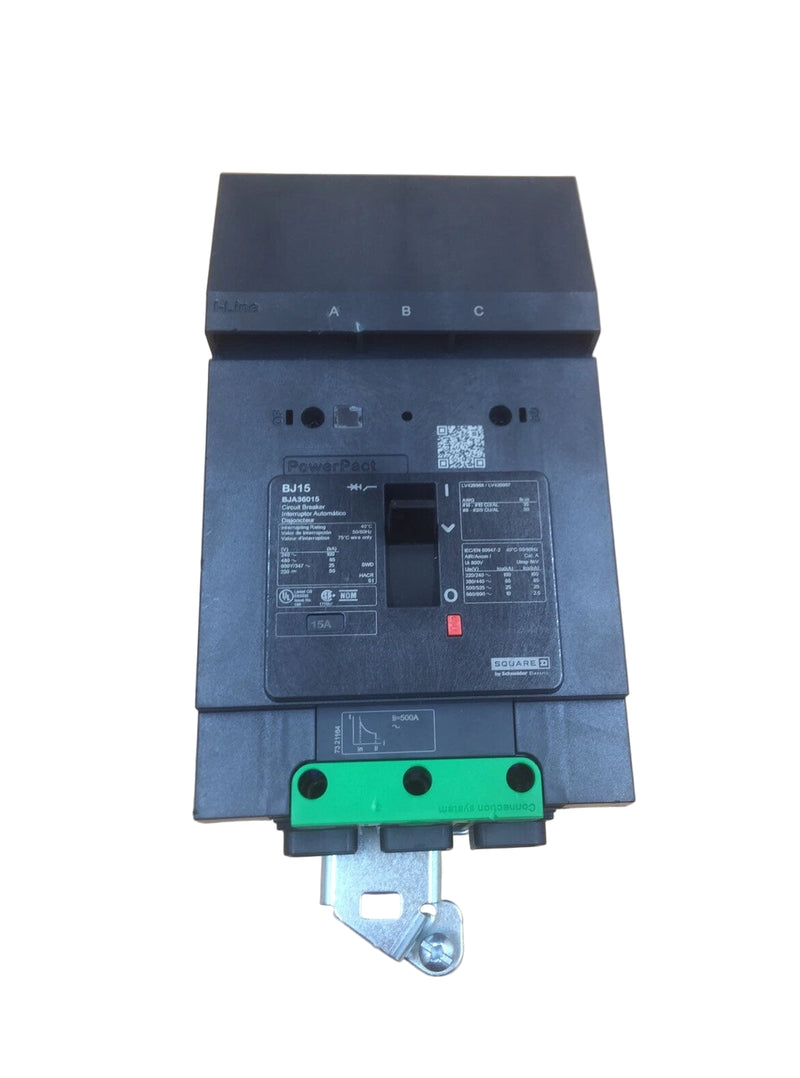

Schneider Electric BJA36015 | PowerPact B-Frame 15A Molded Case Circuit Breaker

Main Description:

The Schneider Electric BJA36015 is a compact PowerPact B-Frame molded case circuit breaker engineered for dependable three-phase protection in commercial and industrial environments. Rated at 15A and 600Y/347 VAC, this breaker delivers robust thermal magnetic protection and features LI (Long-Time and Instantaneous) trip functions to guard against overloads and short-circuit events. Its I-Line Style Plug-In mounting ensures fast, secure installation, while a high interrupting capacity of 65 kA at 480V makes it suitable for applications demanding superior fault-handling performance.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: BJA36015

• Product Type: Molded Case Circuit Breaker (PowerPact B Series)

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Family: PowerPact

• Type: BJA

• Frame Type: B Frame

• Voltage Rating: 600Y/347 VAC

• Amperage Rating: 15 A

• Phase: 3

• Poles: 3

• Interrupting Rating: 65 kA @ 480V

• Protection: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Connection Type: I-Line Style Plug-In (ABC phase connection)

• Terminals: Load-side mechanical lugs

• Approvals/Certifications: UL Listed (implied for PowerPact B Series)

• Condition: New/Never Used Surplus

Key Features:

• High interrupting capacity of 65 kA @ 480V

• Thermal magnetic trip protection for overloads and short circuits

• I-Line plug-in design for quick, secure installation

• 3-pole, 3-phase configuration for balanced system protection

• Durable B-Frame construction suitable for demanding applications

• LI trip functions for advanced time-current response
