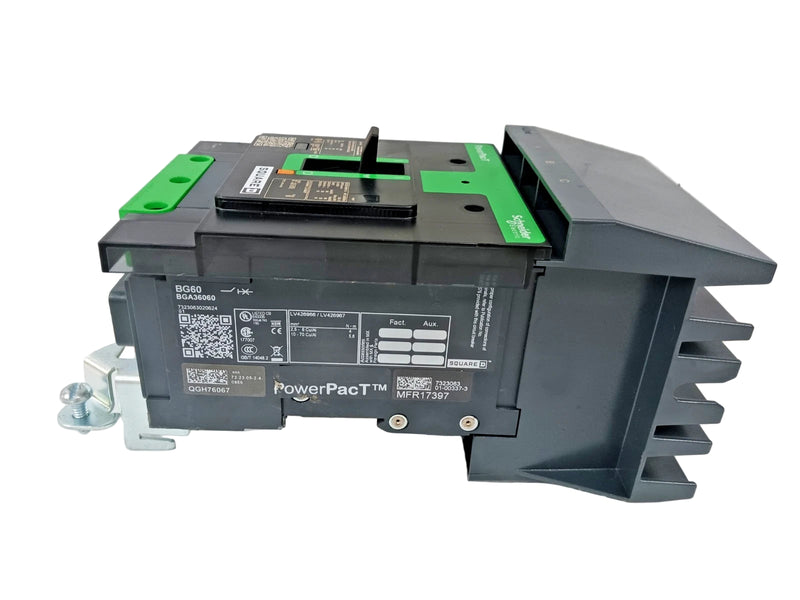

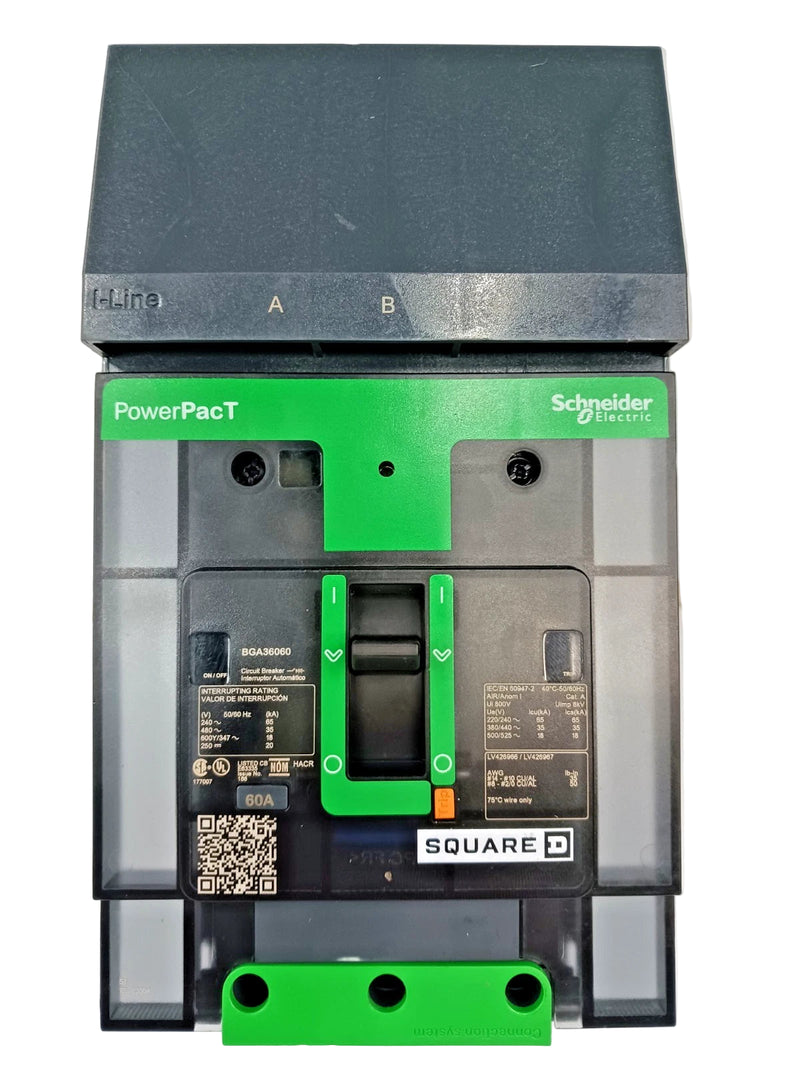

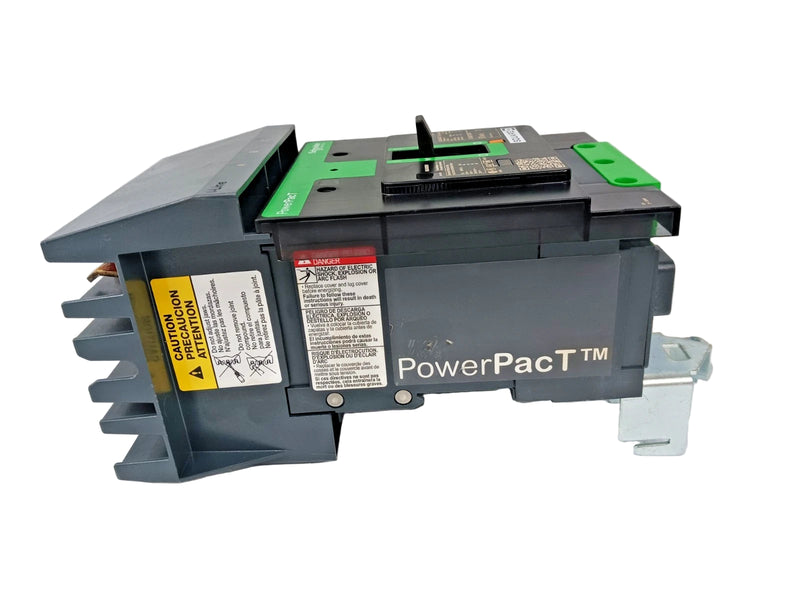

Schneider Electric BGA36060 | PowerPact B-Frame 60A Molded Case Circuit Breaker

Main Description:

The Schneider Electric BGA36060 is a compact and reliable PowerPact B-Frame molded case circuit breaker designed for dependable three-phase protection in 600Y/347 VAC electrical systems. Rated at 60A, this breaker uses thermal magnetic protection with LI (Long-Time and Instantaneous) trip functions to safeguard against overloads and short-circuit events. With a robust interrupting capacity of 18 kA at 600Y/347 VAC and I-Line Style Plug-In mounting, the BGA36060 is ideal for commercial and industrial applications requiring efficient installation and long-term reliability.

Technical Overview:

• Manufacturer: Schneider Electric

• Part Number: BGA36060

• Product Type: Molded Case Circuit Breaker (PowerPact B Series)

• Category: Circuit Breaker

• Subcategory: Molded Case Circuit Breaker

• Family: PowerPact B

• Device Short Name: BG060

• Frame Type: B Frame

• Voltage Rating: 600Y/347 VAC

• Rated Operational Voltage (Ue): 525 VAC, 50/60 Hz

• Amperage Rating: 60 A

• Phase: 3

• Poles: 3

• Interrupting Rating: 18 kA @ 600Y/347VAC

• Breaking Capacity Code: G

• Trip Unit Technology: Thermal Magnetic

• Trip Functions: LI – Long-Time and Instantaneous

• Continuous Current Rating: 80%

• Rated Insulation Voltage (Ui): 800 V

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Connection Type: I-Line (line) / Lugs (load)

• AWG Range: 14 AWG to 2/0 AWG (Cu/Al)

• Mechanical Durability: 20,000 cycles

• Electrical Durability: 10,000 cycles

• Mounting Mode: I-Line Style Plug-In

• Mounting Height: 4.49 in (114 mm)

• Wire Stripping Length: 0.79 in (20 mm)

• Dimensions:

  • Height: 5.39 in (137 mm)

  • Width: 3.19 in (81 mm)

  • Depth: 3.50 in (89 mm)

• Net Weight: 2.90 lb (1.315 kg)

• Quantity per Set: 1

• Phase Connection: ABC

• Application: HACR Rated

• Approvals/Certifications: UL Listed

• Condition: New/Never Used Surplus

Key Features:

• 18 kA interrupting capacity at 600Y/347 VAC

• Compact and durable B-Frame construction

• Thermal magnetic protection with LI trip functions

• Dual-break rotating contacts for reduced peak fault current

• I-Line plug-in installation for speed and efficiency

• Push-to-Trip test button included

• Suitable for industrial and commercial distribution systems
